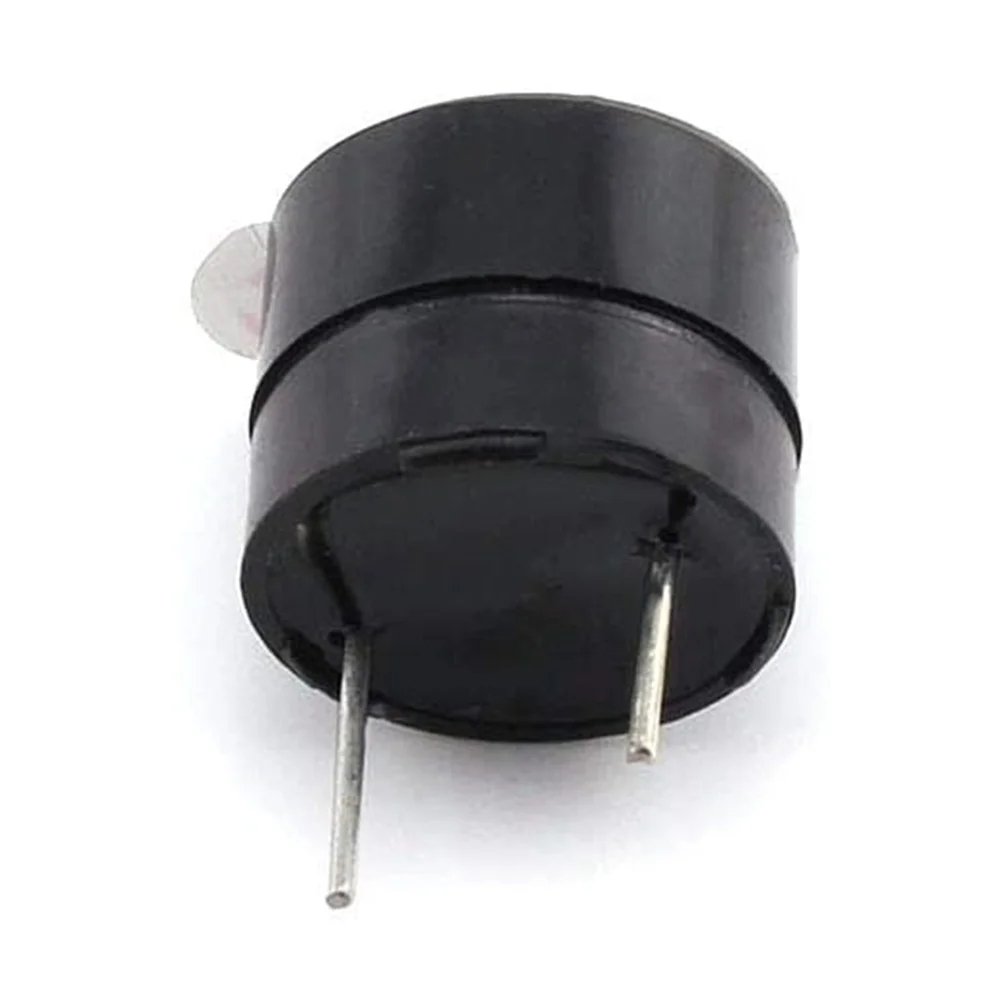

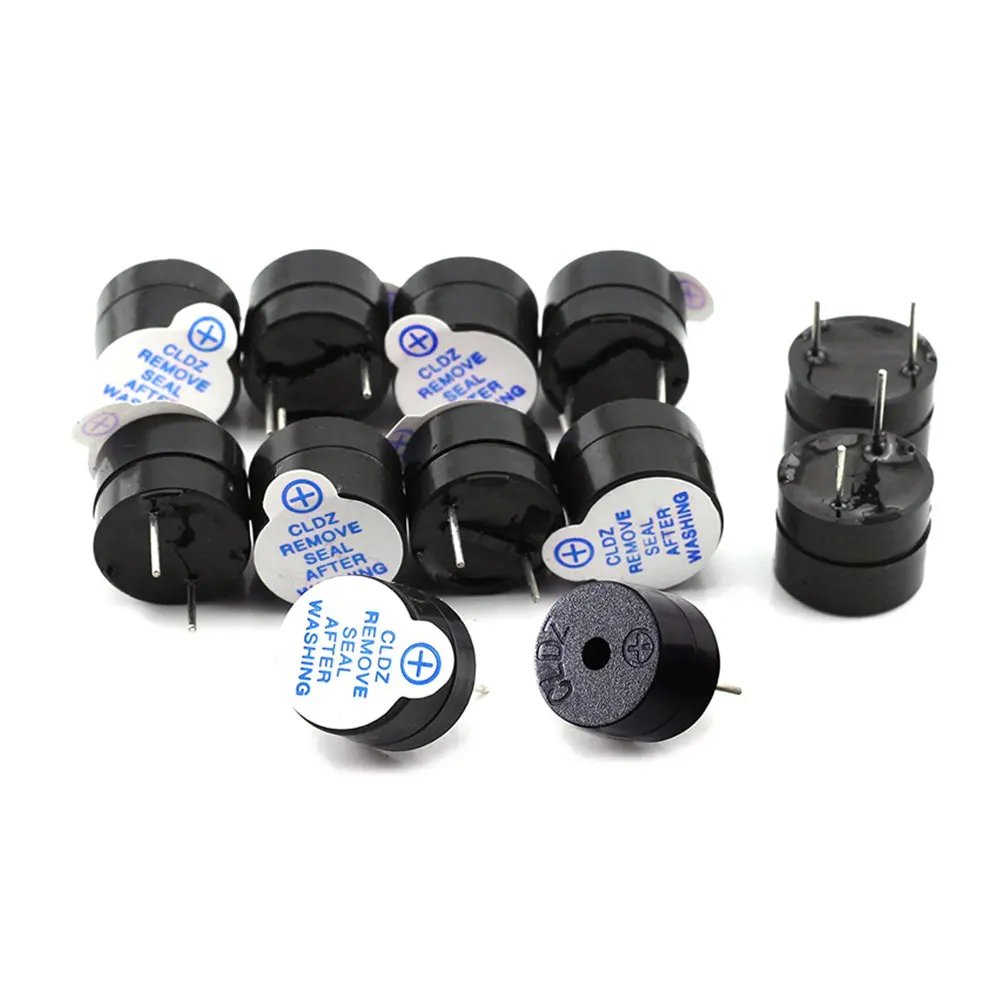

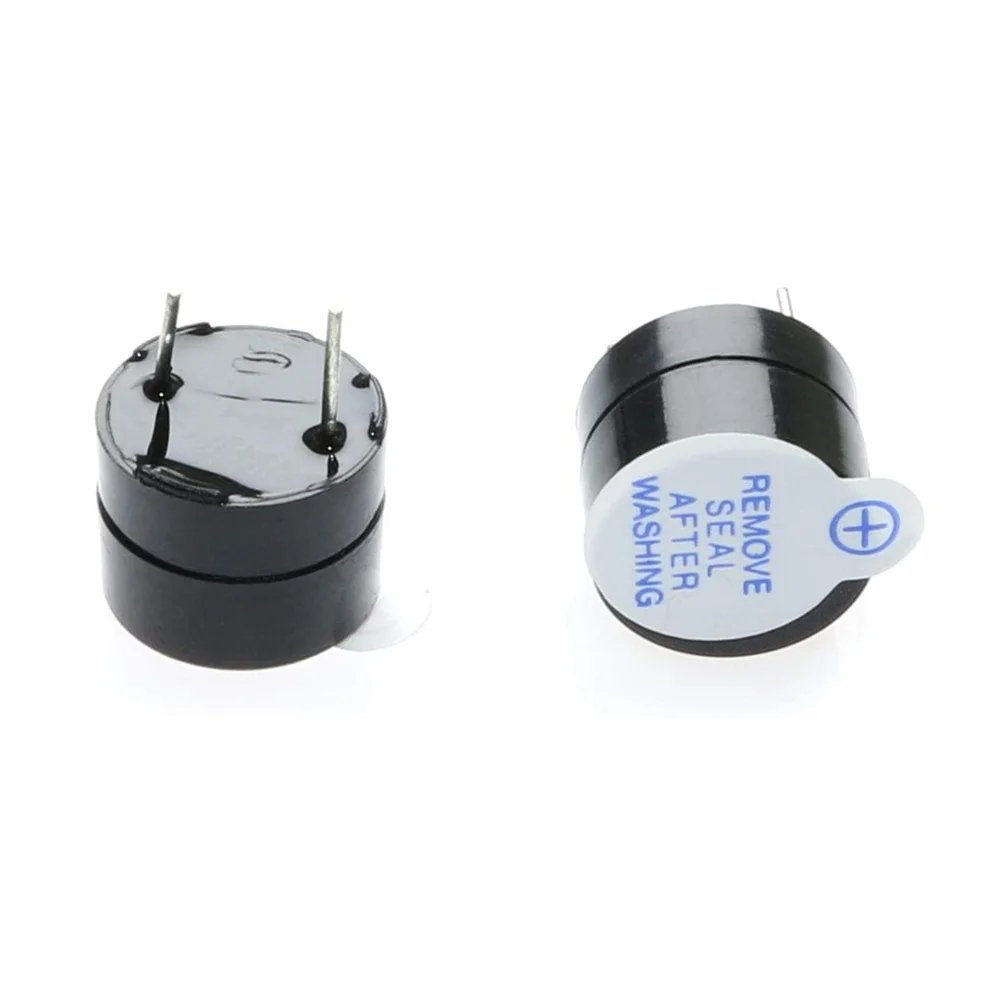

5v Buzzer Module

Original price was: 25৳ .Current price is: 20৳ .

Product Type: Active / Passive Piezo Electric Buzzer Module
Operating Voltage: 3.3V – 5V DC
Operating Current: < 30mA
Sound Output: ≥ 85dB at 10cm
Resonant Frequency: 2.3 kHz (±300 Hz)
Dimensions: 32mm x 13mm x 12mm
Weight: ~2g

Product Description

Features:

5V Low Voltage Operation: Designed to run efficiently on standard 3.3V to 5V power supplies, making it safe for direct MCU control.
Onboard Transistor Driver: Built-in transistor circuit ensures minimal current draw from microcontroller I/O pins while driving high volume output.
Loud & Clear Sound Output: Produces a sharp, high-decibel tone (≥85dB) that is easily audible even in noisy environments.
Easy Mounting Holes: Features pre-drilled M3 screw holes for quick and secure mounting onto robot chassis or project enclosures.
Universal Microcontroller Compatibility: Plug-and-play operation with Arduino, Raspberry Pi, ESP32, STM32, and PIC microcontrollers.

Specifications:

Name: 5V Active / Passive Buzzer Module
Operating Voltage: 3.3V – 5V DC
Operating Current: < 30mA
Sound Level Output: ≥ 85dB at 10cm
Resonant Frequency: ~2300 Hz
Driver Transistor: S8050 / S8550 (Onboard)
Pin Out: VCC, GND, I/O (3-Pin Header)
Dimensions: 32mm x 13mm x 12mm
Weight: ~5g

আপনি যদি সিকিউরিটি অ্যালার্ম, মেকাট্রনিক্স প্রজেক্ট বা ইলেকট্রনিক্স টেস্ট বেঞ্চের জন্য একটি সুপার-ডিউরেবল, বাজেট-ফ্রেন্ডলি এবং লাউড সাউন্ডের ৫-ভোল্ট বাজার মডিউল খুঁজে থাকেন, তবে এই 5V Buzzer Module হবে আপনার জন্য একটি আল্টিমেট চয়েস।
