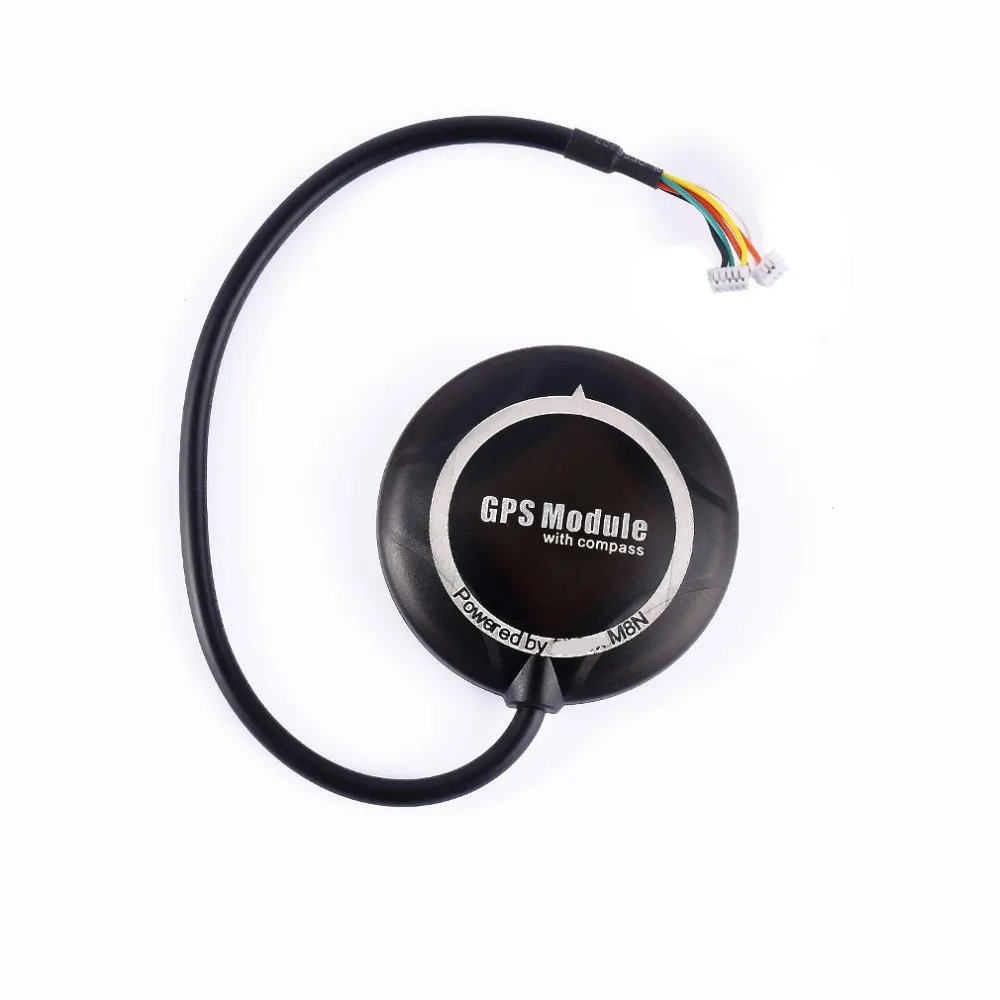

Ublox NEO-M8N GPS Module for AMP/Pixhawk

Ublox NEO-M8N GPS Module for AMP/Pixhawk

Original price was: 3,000৳ .Current price is: 2,800৳ .

In stock

Brand: u-blox / Generic
Model: NEO-M8N GPS with Compass
Product Type: High-Precision Drone GPS Module with Compass
Chipset: u-blox M8 Series (NEO-M8N)
Protocol: NMEA-0183 / UBX
Compass: Integrated Digital Compass (QMC5883L / HMC5883L)
Input Voltage: 3.3V – 5.0V DC
Weight: ~18g (with protective shell & cable)

Product Description

Features:

Advanced M8 Chipset: Delivers faster satellite searching speeds and ultra-high positioning accuracy in challenging environments.

Integrated Digital Compass: Built-in compass sensor provides accurate directional orientation and heading telemetry for flight controllers.

Multi-Constellation Support: Concurrently tracks GPS, GLONASS, BeiDou, Galileo, and SBAS for maximum satellite lock stability.

High-Gain Ceramic Antenna: High-gain patch antenna ensures quick initial satellite acquisition, fast cold starts, and low signal latency.
Onboard Flash Memory: Supports configuration saving and faster warm/hot restarts during field operations.

Enhanced Flight Safety: Provides reliable position telemetry for APM, Pixhawk, Betaflight, INAV, and ArduPilot Return-to-Home (RTH) features.

Specifications:

Name: Ublox NEO-M8N GPS Module with Compass
Chipset: u-blox NEO-M8N
Frequency: GPS L1 C/A, GLONASS L1OF, BeiDou B1I
Receiving Channels: 72 Search Channels
Concurrent GNSS: Tracks multiple GNSS constellations concurrently
Compass Type: Integrated QMC5883L / HMC5883L
Communication Protocol: NMEA-0183 / UBX
Baud Rate: 9600 bps (Configurable up to 115200 bps)
Horizontal Position Accuracy: ~0.6m – 2.5m (with SBAS)
Input Voltage: 3.3V – 5.0V DC
Dimensions: ~36mm x 36mm x 14mm (with shell)
Weight: ~18g

আপনি যদি ড্রোন, কোয়াডকপ্টার বা অটোনোমাস ফ্লাইটের জন্য একটি সুপার-ডিউরেবল, হাই-প্রিসিশন এবং কম্পাস ইন্টিগ্রেটেড অল-ইন-ওয়ান জিপিএস মডিউল খুঁজে থাকেন, তবে Ublox NEO-M8N GPS Module হবে আপনার জন্য একটি আল্টিমেট চয়েস।
