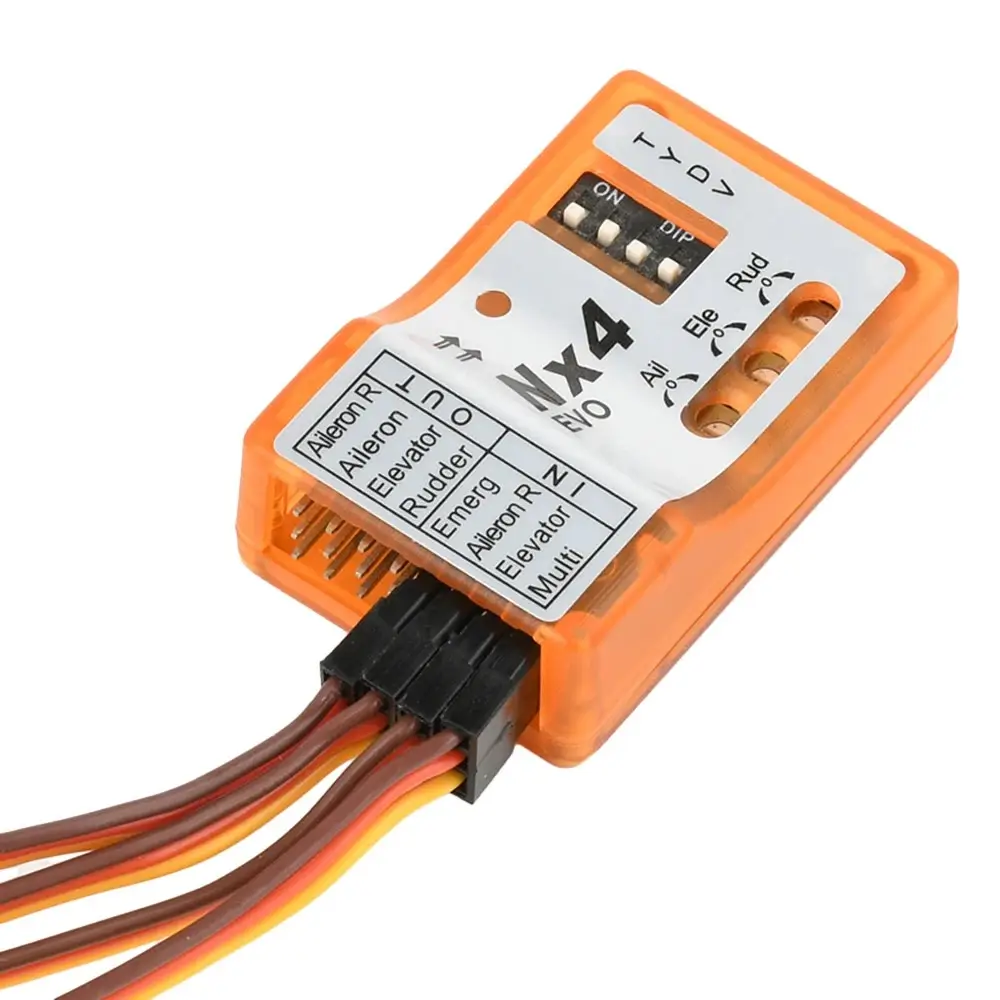

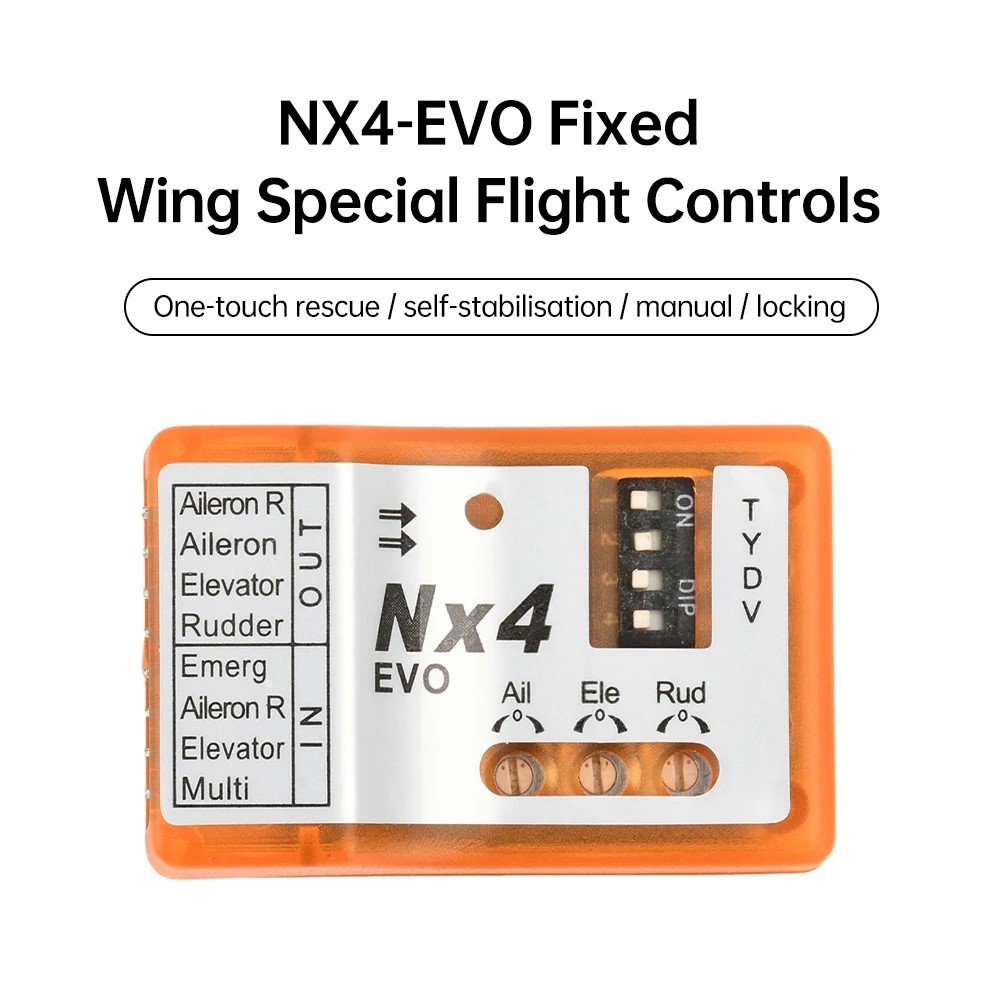

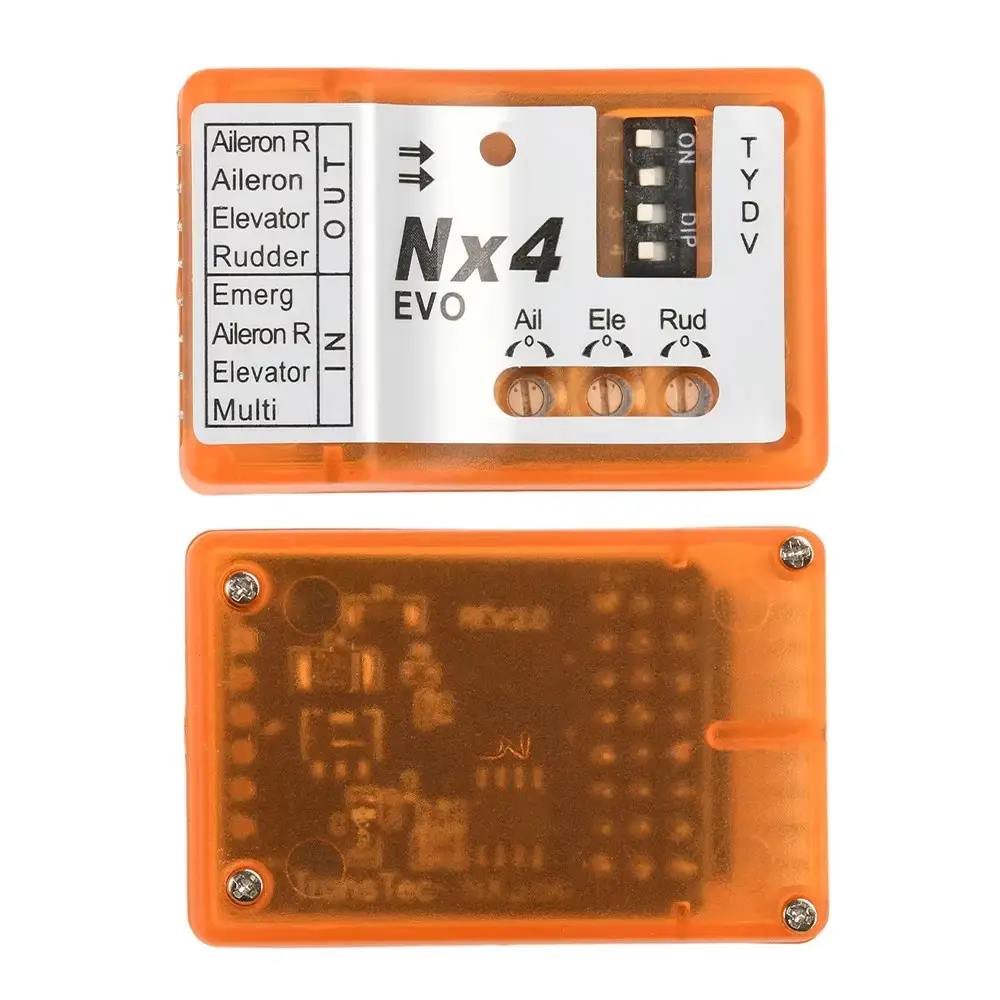

ZMR NX4 EVO Flight Controller for Fixed-wing Planes

It features an integrated 3-axis precision gyro sensor, selectable wing-type configurations, and independent pot adjustment for sensitivity gains. Built with four versatile flight modes including emergency horizontal auto-balance, it provides maximum wind resistance, smooth aerobatic tracking, and complete versatility for foamies, balsa RC planes, micro gliders, and DIY fixed-wing setups.

Features:

4-Mode Flight Stabilization: Supports Manual (Off), Rate Mode (Wind Correction), Hold Mode (Attitude Lock), and Auto-Balance (Self-Leveling) modes.
Multiple Aircraft Wing Configurations: Easily configured for Single/Dual Ailerons, V-Tail airframes, and Delta Wing (Flying Wing) layouts via onboard DIP switches.
Independent Gain Potentiometers: Separate manual sensitivity pots for Roll, Pitch, and Yaw allow fine-tuned stabilization adjustments for any airframe size.
One-Key Emergency Auto-Balance: Instantly levels the plane’s wings horizontal upon mode activation to prevent stalls and novice crashes.

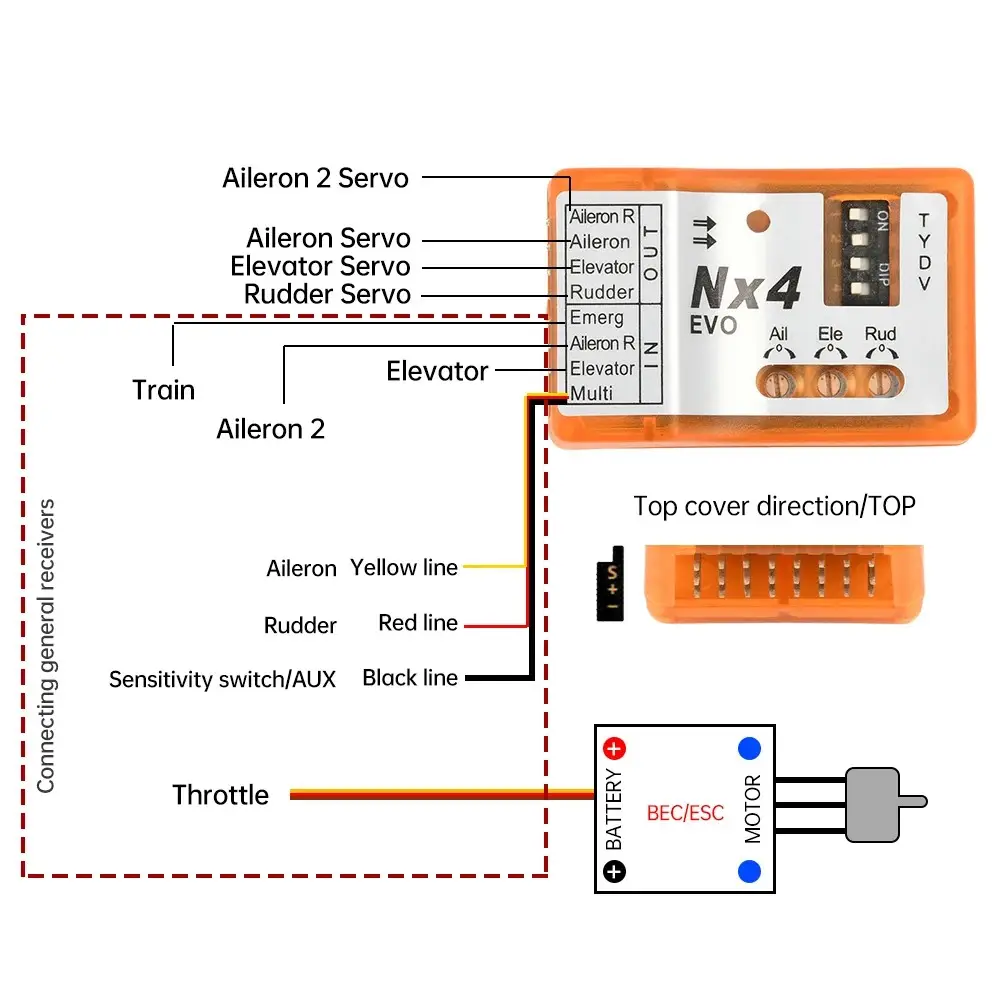

Lightweight & Plug-and-Play Setup: Ultra-compact footprint with standard servo pin headers enables easy mounting and clean wiring inside small cockpits.

Specifications:

Name: ZMR NX4 EVO Flight Controller for Fixed-wing Planes
Input Voltage Range: 5.0V – 6.0V DC
Supported Wing Types: Standard Layout, Delta Wing, V-Tail
Flight Modes: Off (Manual), Rate, Hold, Auto-Balance
Gyroscope: High-Precision 3-Axis Sensor
Operating Temperature: -20°C to +65°C
Dimensions: 43mm x 28mm x 15mm
Weight: ~11g

আপনি যদি আরসি প্লেন, গ্লাইডার বা ডেল্টা উইংয়ের জন্য একটি সুপার-ডিউরেবল, বাজেট-ফ্রেন্ডলি এবং ৪-মোড অটো-ব্যালেন্স ফ্লাইট কন্ট্রোলার খুঁজে থাকেন, তবে ZMR NX4 EVO Flight Controller for Fixed-wing Planes হবে আপনার জন্য একটি আল্টিমেট চয়েস।

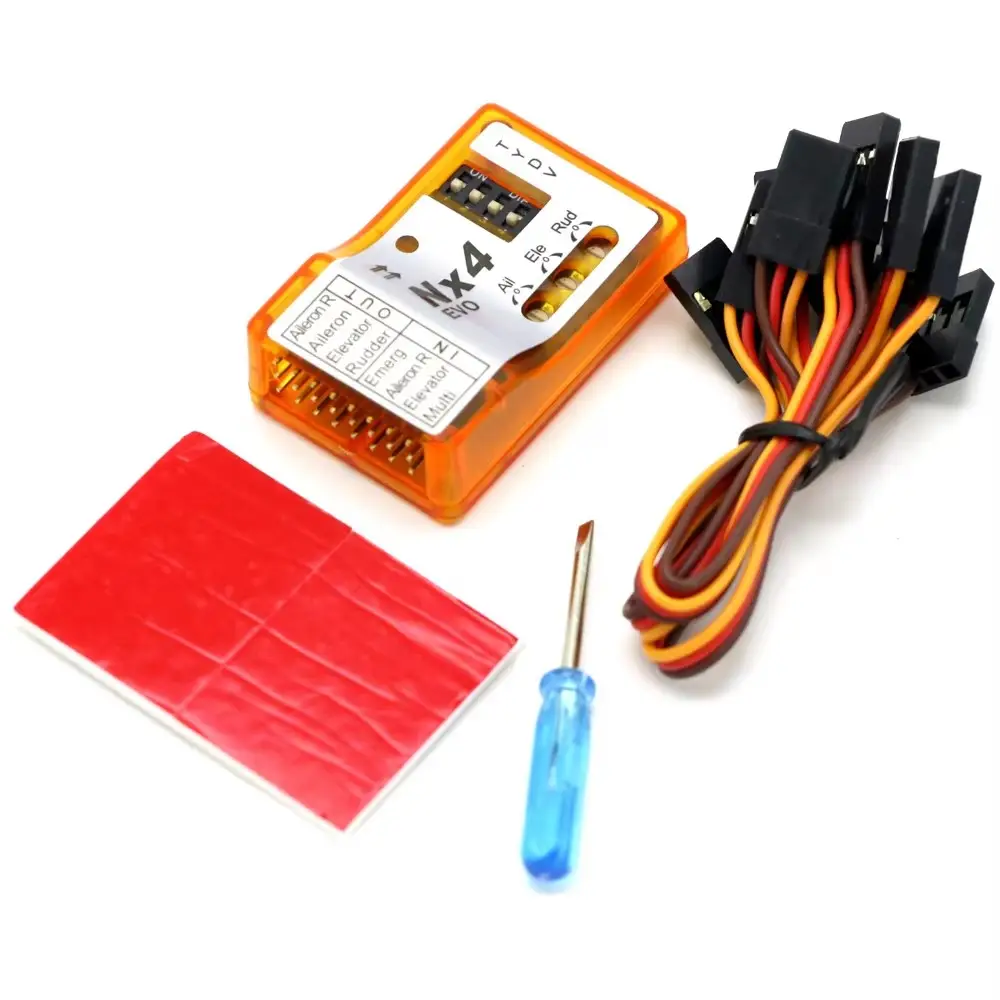

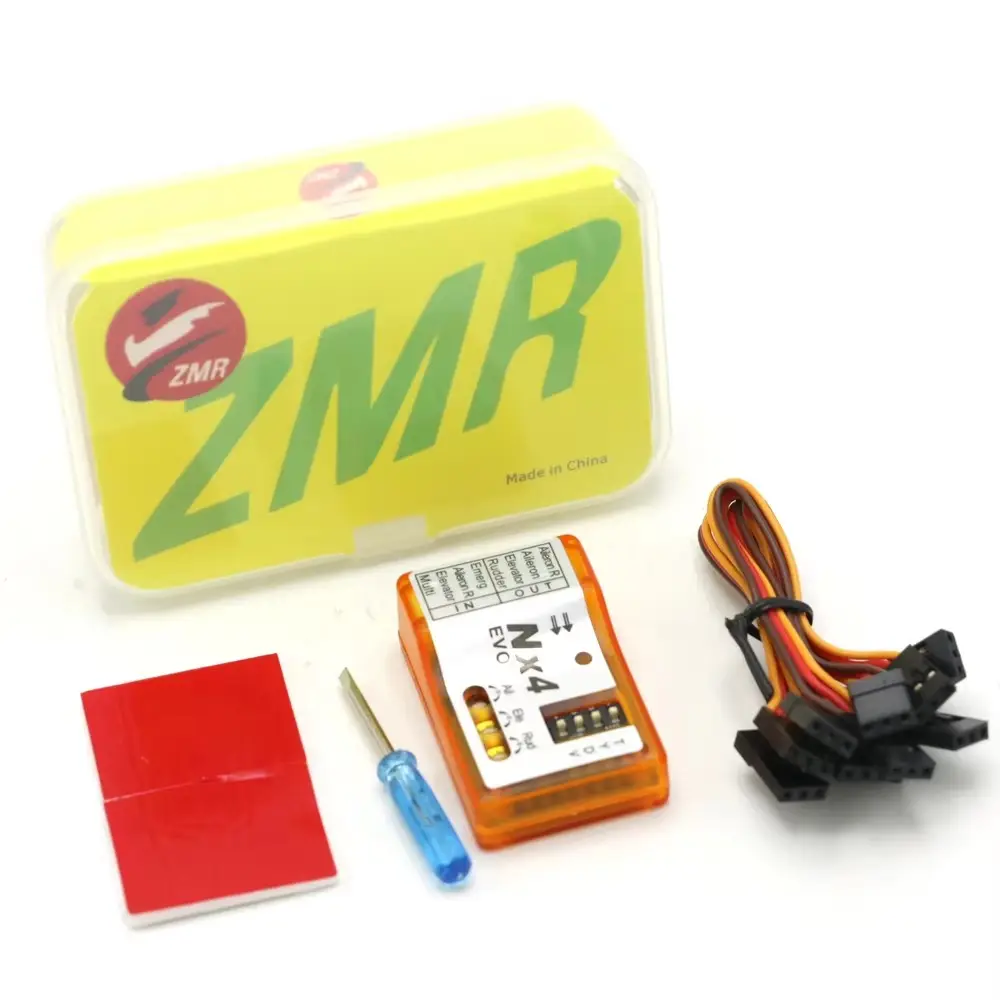

📦 Product Included:

1x ZMR NX4 EVO Flight Controller
1x Set of Signal Receiver Connecting Wires
1x Double-Sided Adhesive Mounting Tape
1x Manual / Quick Setup Guide
