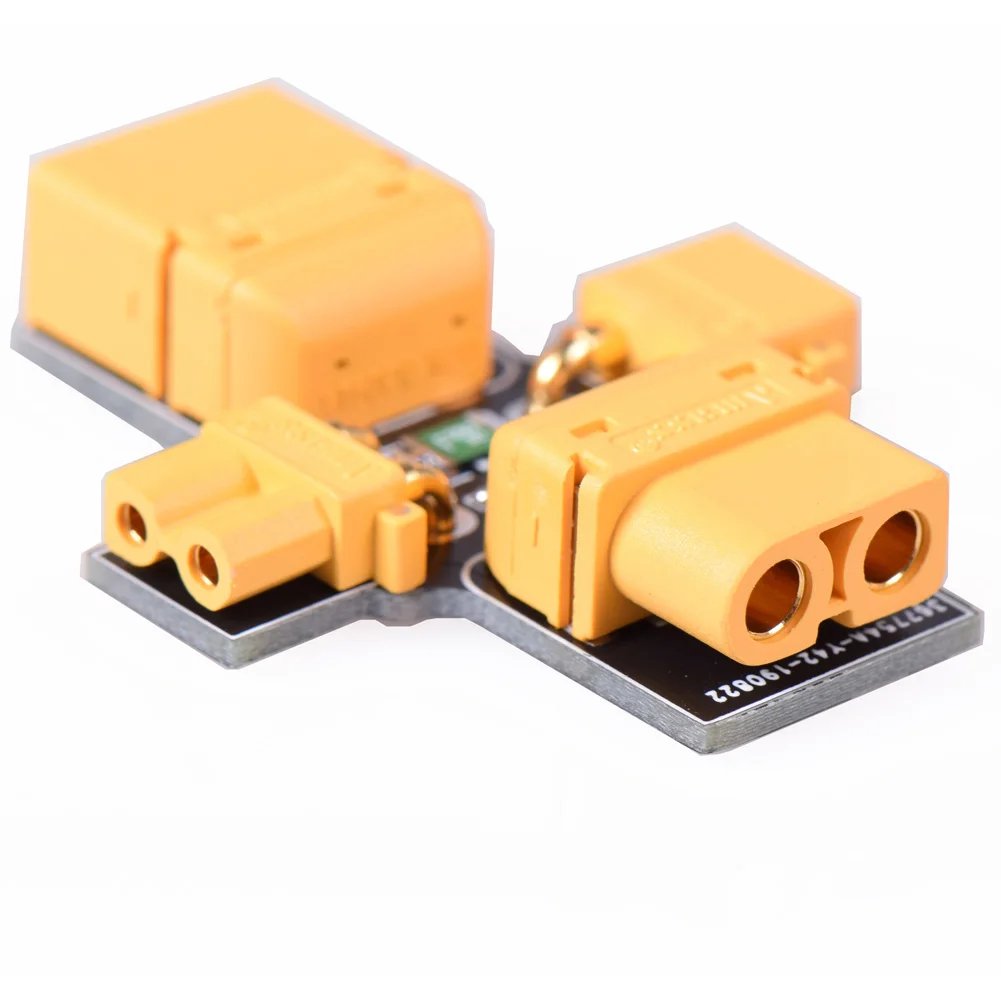

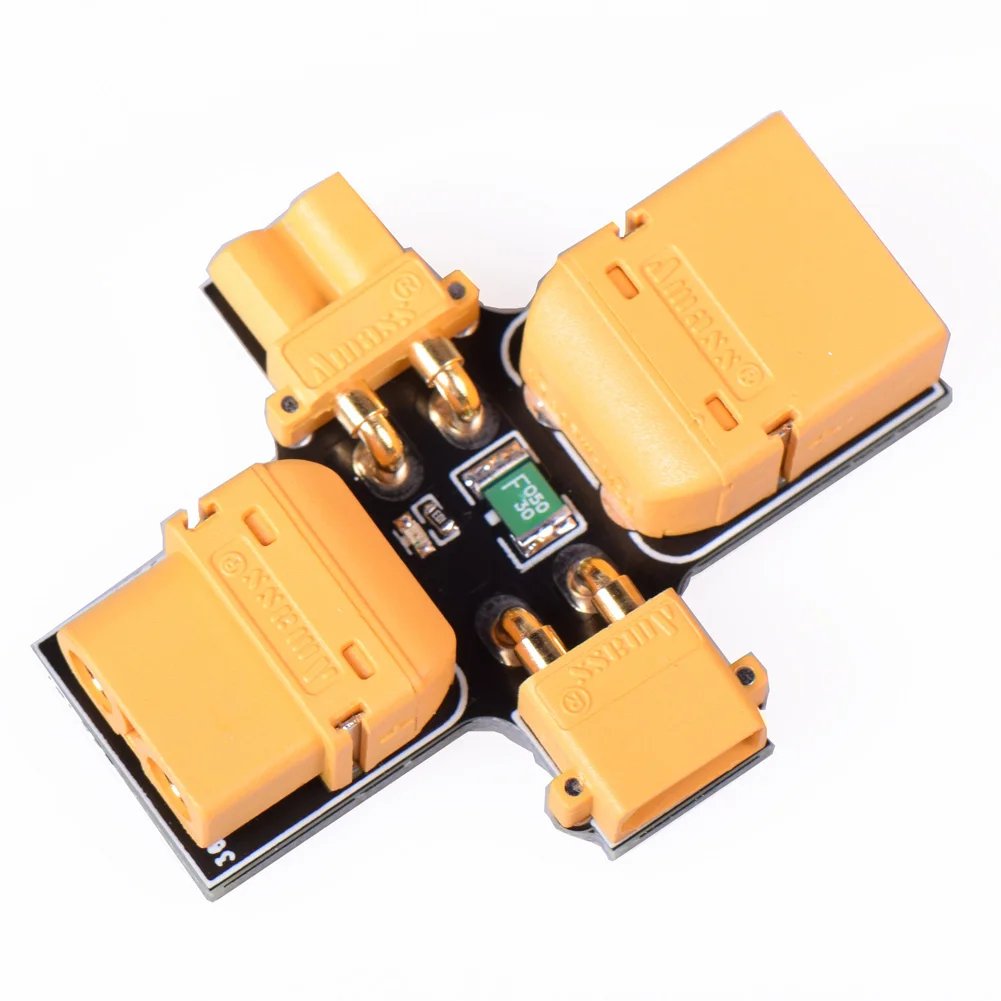

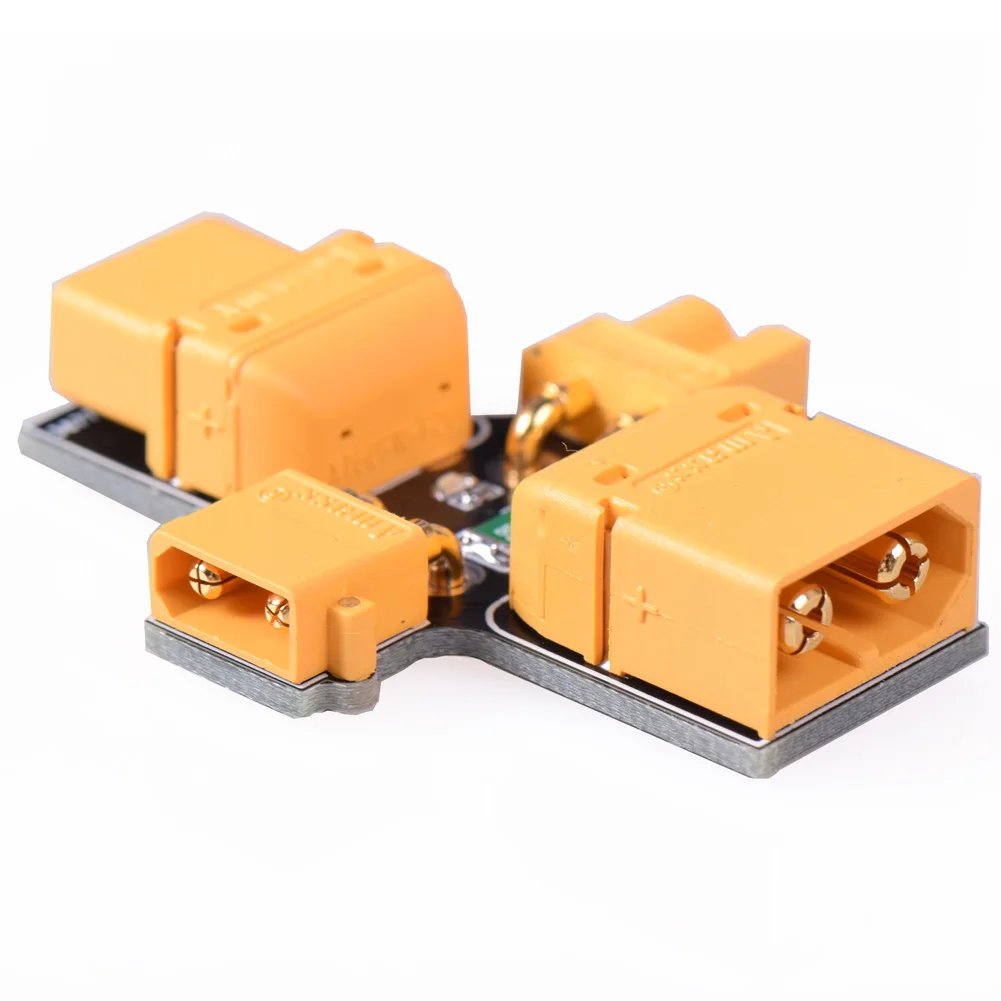

Amass Smoke Stopper 1-6S 30V XT30 XT60 Short-circuit Protection

Amass Smoke Stopper 1-6S 30V XT30 XT60 Short-circuit Protection

Original price was: 900৳ .Current price is: 700৳ .

Brand: Amass
Model: Smoke Stopper 1-6S 30V (XT30 / XT60)
Product Type: Self-Recovery Fuse Short-Circuit Protection Fuse
Supported Voltage: 1S–6S LiPo (Up to 30V DC)
Connectors: Integrated XT30 & XT60 Input/Output Interfaces
Hold Current: 1A / 2A (Selectable or Self-Resetting PPTC Fuse)
Trip Current: ~3A–5A (Triggers instantly during short circuit)
Dimensions: ~42mm x 16mm x 12mm
Weight: ~15g

Product Description

Features:

Dual Connector Compatibility: Built-in XT30 and XT60 plug connectors allow direct connection to micro whoops, toothpicks, and 5-inch to 7-inch quadcopters.
Instant Short-Circuit Protection: Fast-acting PPTC resettable fuse cuts off power immediately if a wiring mistake or short circuit is detected.
Resettable Fuse Technology: Automatically resets after cooling down and resolving the short, eliminating the need to replace blown glass fuses.
Broad Voltage Compatibility: Safe to use on 1S all the way up to 6S LiPo battery packs (Maximum continuous voltage up to 30V).
Visual Status Indicators: Integrated LED lights clearly indicate proper power delivery versus short-circuit trip warnings.

Specifications:

Name: Amass Smoke Stopper Short-Circuit Protection Module
Supported Battery Cells: 1S – 6S LiPo
Max Voltage Limit: 30V DC
Connector Interface: XT30 & XT60
Trip Response Time: Milliseconds (High-speed cutoff)
Material: PCB Board with Molded Housing
Dimensions: ~42mm x 16mm x 12mm
Weight: ~15g

আপনি যদি ড্রোন বিল্ড বা ইলেকট্রনিক্স টেস্ট-বেঞ্চের জন্য একটি সুপার-ডিউরেবল, বাজেট-ফ্রেন্ডলি এবং শর্ট-সার্কিট সেফটি অল-ইন-ওয়ান স্মোক স্টপার খুঁজে থাকেন, তবে Amass Smoke Stopper হবে আপনার জন্য একটি আল্টিমেট চয়েস।
