Amass XT90S Connector Anti-Spark Male Female Connector for Battery

Features:

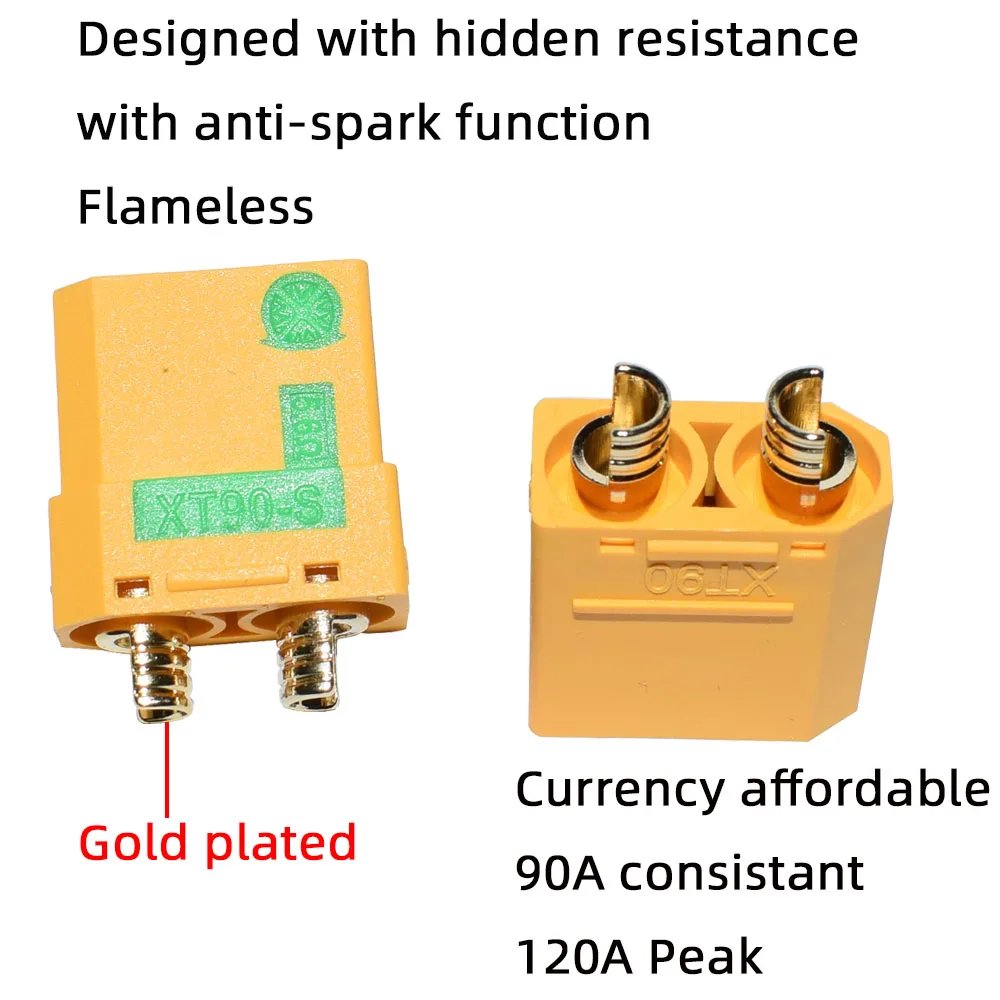

Built-In Anti-Spark Resistance: Integrated resistor inside the female housing eliminates damaging sparks when plugging in high-voltage 6S–12S LiPo batteries.
High-Current Gold-Plated Plugs: Brass gold-plated bullet pins ensure maximum conductivity, low electrical resistance, and efficient power transfer.
Fire-Retardant Nylon Shell: Heat-resistant UL94 V0 rated casing prevents short circuits, melting, and mechanical distortion under load.

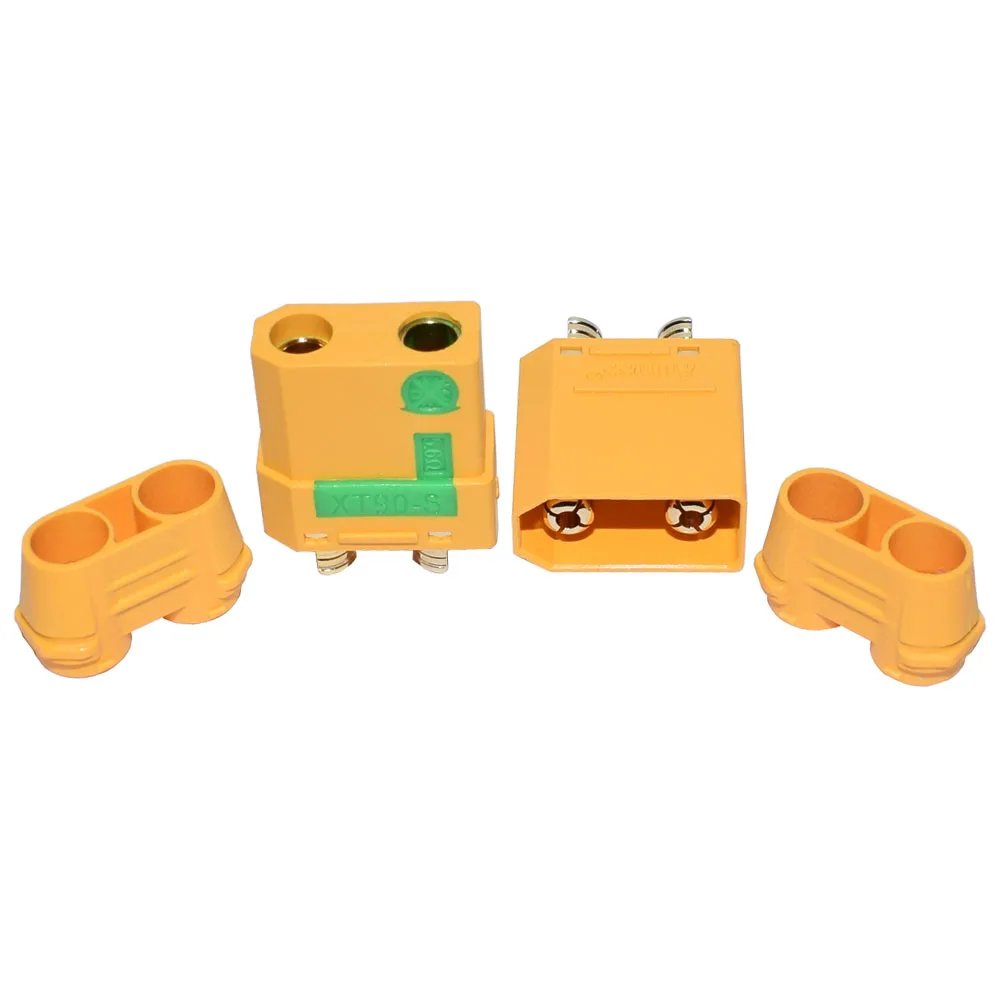

Protective Wire Sleeves: Includes snap-on insulation covers to protect soldered wire joints without requiring heat-shrink tubing.
Ergonomic Anti-Slip Grip: Textured outer housing allows easy insertion and firm grip when disconnecting tight battery leads.

Specifications:

Name: Amass XT90S Connector Anti-Spark Male Female Connector
Model: XT90-S (Anti-Spark Series)
Rated Current: 60A
Peak Current: 90A
Housing Material: Flame-Retardant Nylon
Contact Plating: Gold-Plated Brass
Recommended Wire Gauge: 8AWG – 12AWG
Temperature Range: -20°C to 120°C
Weight: ~15g (Pair)

আপনি যদি হাই-ভোল্টেজ ৬এস থেকে ১২এস আরসি ড্রোন বা হেভি-ডিউটি ব্যাটারির জন্য একটি সুপার-ডিউরেবল, বাজেট-ফ্রেন্ডলি এবং স্পার্ক-প্রুফ Amass XT90S Anti-Spark Connector খুঁজে থাকেন, তবে Amass XT90S Connector Anti-Spark Male Female Connector হবে আপনার জন্য একটি আল্টিমেট চয়েস।

📦 Product Included:

1x Amass XT90S Anti-Spark Female Connector
1x Amass XT90 Male Connector
2x Protective Wire Insulation Covers
