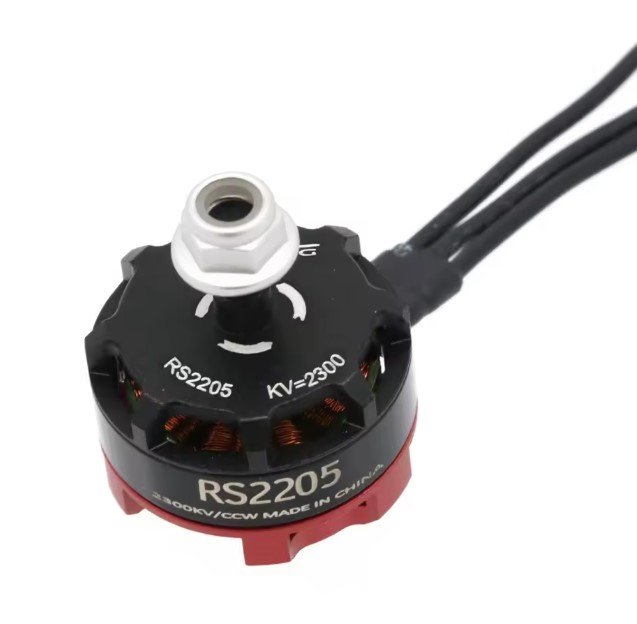

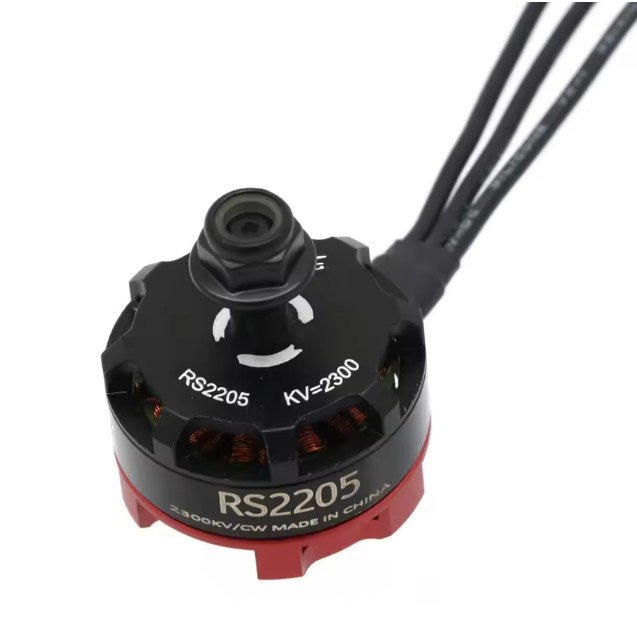

Emax RS22052300kv Brushless Motor For FPV

Take your FPV racing experience to the next level with the EMAX RS2205 2300kv Brushless Motor. Engineered for speed, durability, and raw power, this “RaceSpec” series motor is a favorite among drone pilots worldwide.

Features:

Active Cooling System: One of its standout features is the integrated cooling fins; as the motor spins faster, it actively draws air in to reduce operating temperatures by up to 30%, ensuring stable performance even during intense high-speed maneuvers.

Premium N52 Magnets: Featuring high-grade N52 Neodymium magnets, it delivers buttery-smooth performance and an incredibly fast throttle response.

Japanese Bearings: Built with genuine Japanese NMB bearings for smoother rotation, low noise, and maximum lifetime durability.

Extended Prop Shaft: Features an extended shaft with M5 thread to easily fit and lock standard FPV propellers.

Specification:

Name: EMAX RS2205 2300kv Brushless Motor Framework / Configuration: 12N14P Compatible LiPo: 3S – 4S Max Thrust: 1024g (with 4S LiPo and recommended prop) Shaft Diameter: 3mm (M5 Thread) Weight: ~30g

Built for performance, ready for any racing or freestyle challenge! Whether you are building a new racing quad or upgrading your current setup, the EMAX RS2205 offers the perfect balance of lightweight design and massive thrust to keep you ahead of the competition.

📦 Product Included :

1x EMAX RS2205 2300kv Brushless Motor (CW or CCW)

1x Lock Nut (Propeller Nut)

2x Sets of Mounting Screws (for 3mm and 4mm thick frames)
