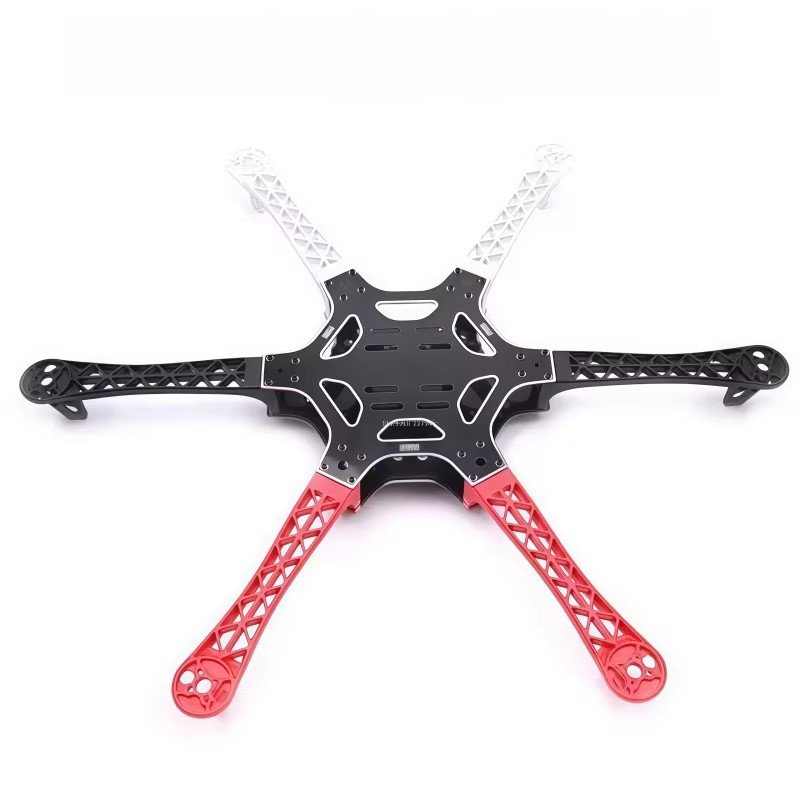

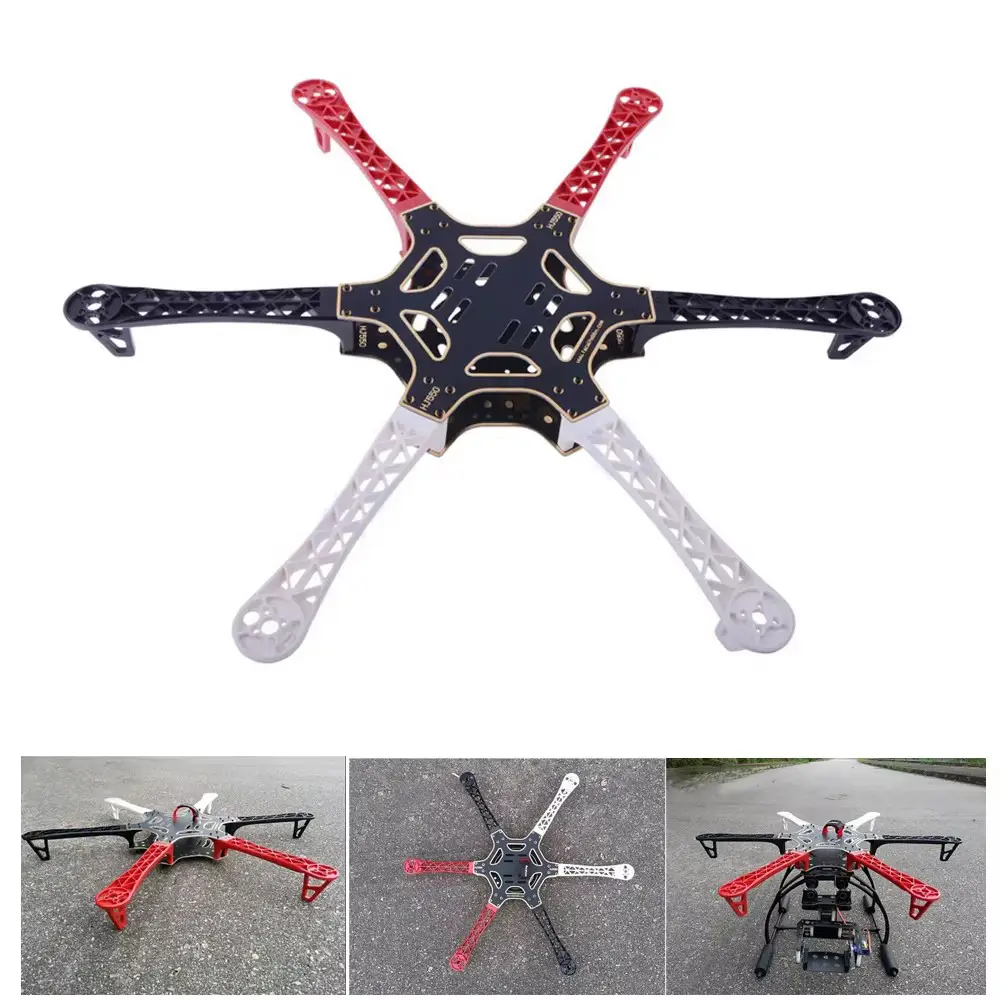

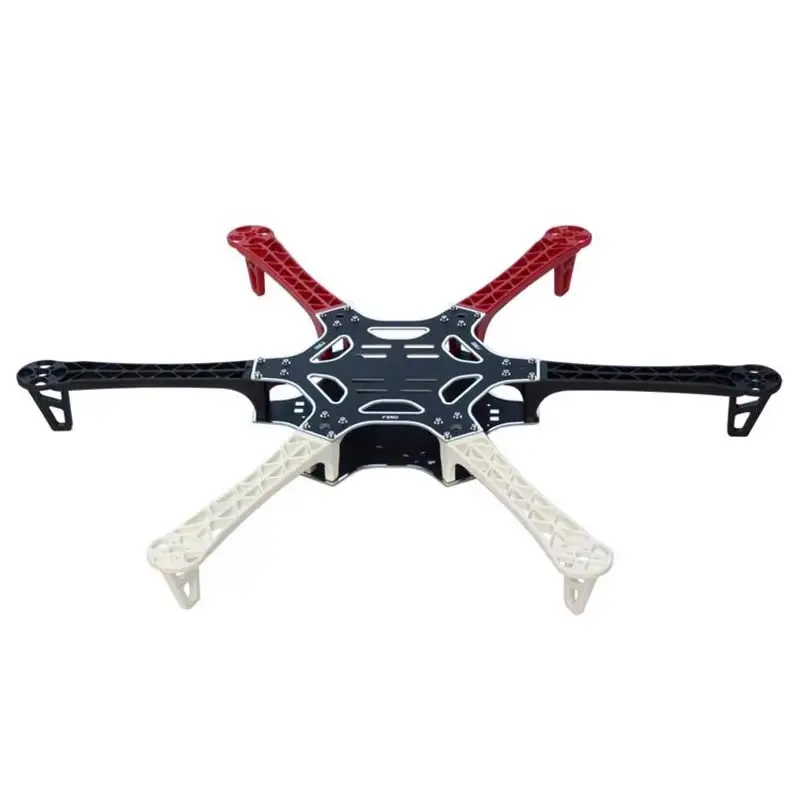

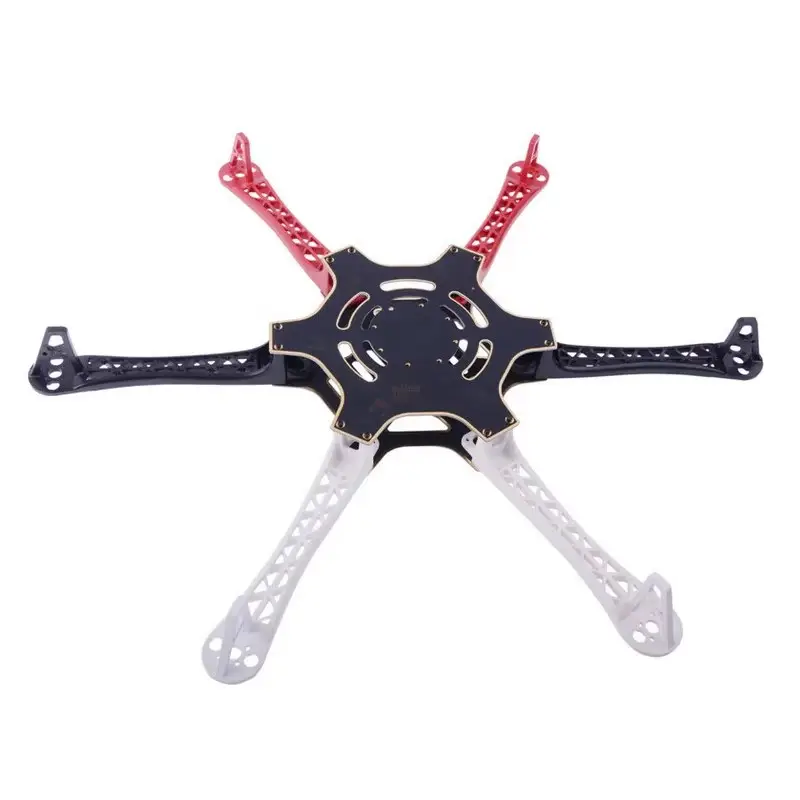

F550 hexaCopter Frame with High Quality PCB

It features high-strength PA66 composite nylon arms, an integrated heavy-duty PCB center plate for direct power distribution, and a highly visible multi-color orientation scheme. Built with six-rotor flight redundancy, ample deck space for sensors and gimbals, and standardized mounting footprints, it provides maximum collision durability, clean wire management, and complete versatility for aerial photography, mapping drones, and autonomous robotics platforms.

Features:

Integrated Power Distribution Board (PDB): Composite glass-fiber center plate includes high-current PCB solder pads for clean, direct ESC and battery power routing without external wire harnesses.
Six-Rotor Flight Redundancy: 6-arm hexacopter configuration provides enhanced stability, higher payload capacity, and safer landings compared to standard quadcopters.

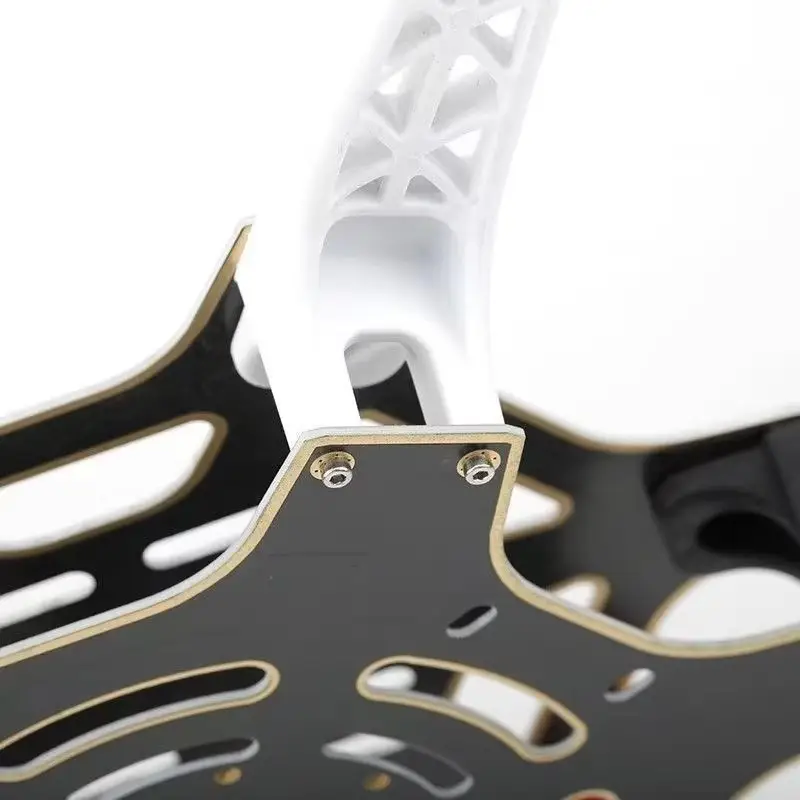

Ultra-Durable PA66 Nylon Arms: Crafted from reinforced polyamide nylon to absorb hard landings and withstand severe vibration stress during flight.
Multi-Color Visual Orientation: Uses distinct red, white, and black arms to help pilots instantly recognize front, rear, and lateral orientation in line-of-sight (LOS) flying.
Universal FC & Gimbal Compatibility: Fits standard flight controllers like Pixhawk, APM, INAV, and Betaflight, while offering lower mounting space for 2-axis/3-axis camera gimbals.

Specifications:

Name: F550 Hexacopter Frame with High Quality PCB
Wheelbase: 550 mm
Frame Weight: ~430 g
Arm Material: Ultra-Durable PA66 Nylon
Center Plate Material: High-Strength Glass Fiber with PCB Power Distribution
Arm Layout: 2x Red, 2x White, 2x Black (or Red/White setup)
Recommended Battery: 3S – 4S 3000mAh – 5200mAh LiPo
Recommended Propeller Size: 9 inch / 10 inch

আপনি যদি ড্রোন মেকিং, মেপিং প্রজেক্ট, পে-লোড ট্র্যাকিং বা রোবোটিক্সের জন্য একটি সুপার-ডিউরেবল, বাজেট-ফ্রেন্ডলি এবং হাই-কোয়ালিটি পিসিবি বোর্ড সহ ৫৫০মিমি হেক্সাকপ্টার ফ্রেম খুঁজে থাকেন, তবে F550 Hexacopter Frame with High Quality PCB হবে আপনার জন্য একটি আল্টিমেট চয়েস।

📦 Product Included:

6x F550 Frame Arms (Red, White, Black combo)
1x Upper Fiber Glass Center Plate
1x Lower Fiber Glass Center Plate (Integrated PCB Power Board)
1x Complete Frame Assembly Hardware & Screw Set
