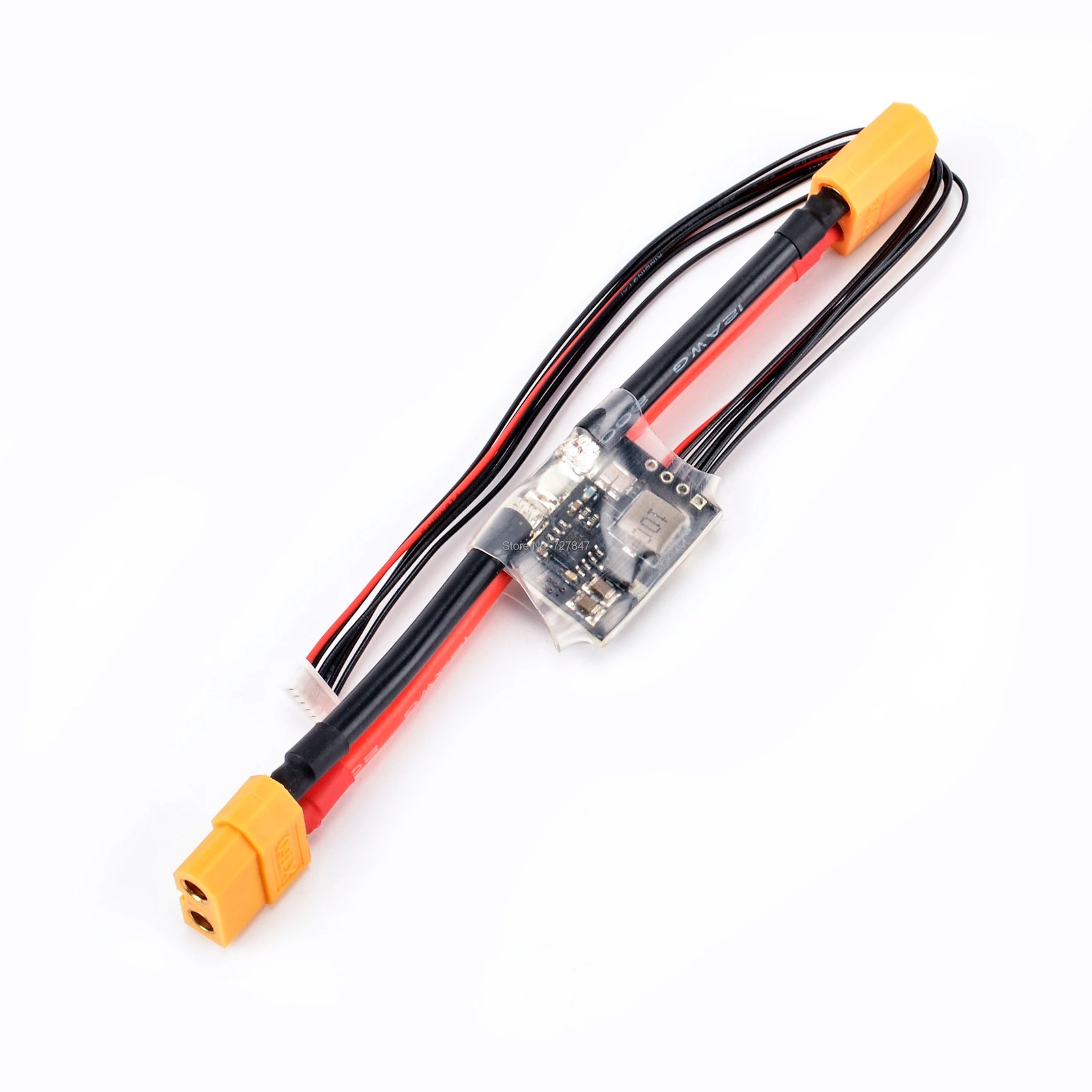

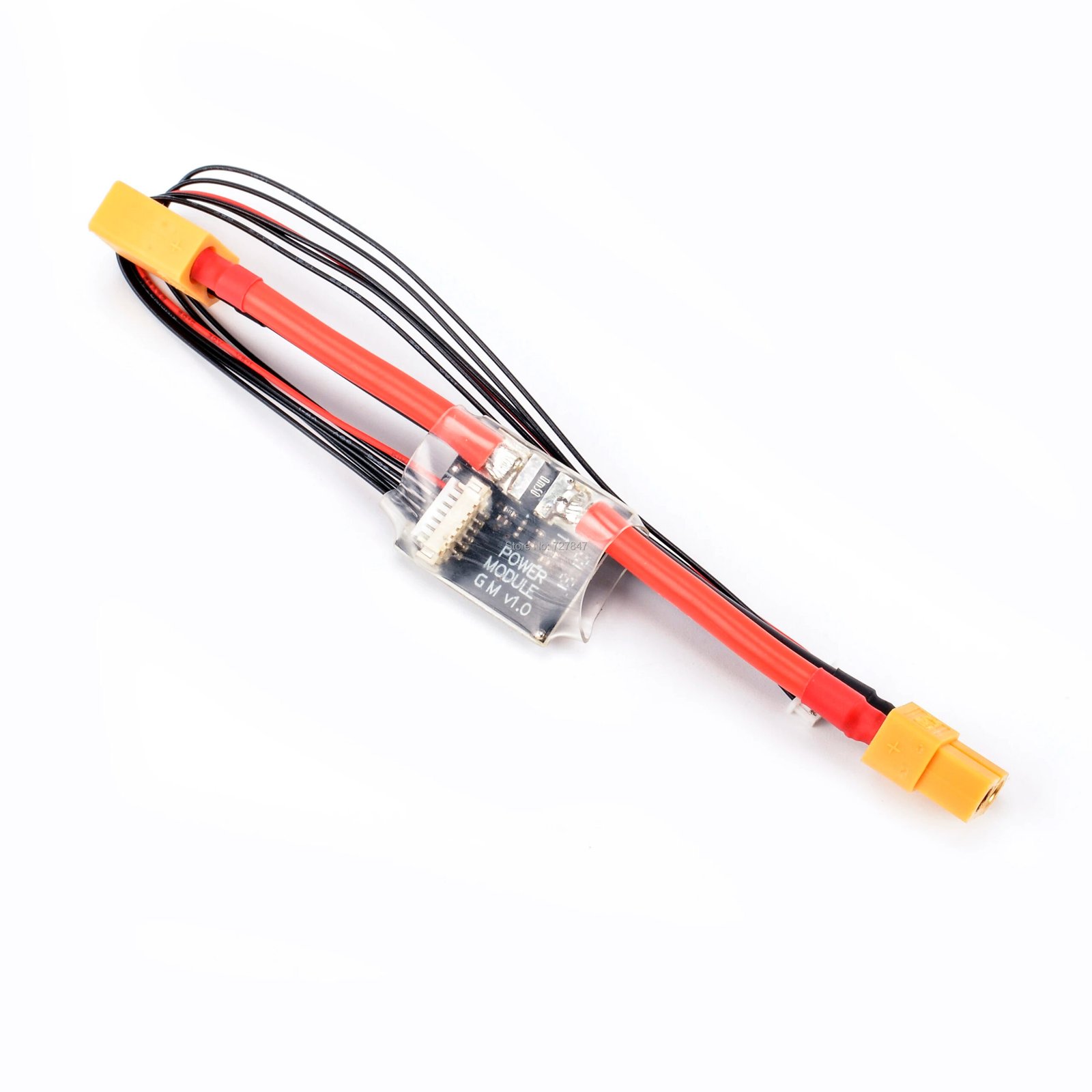

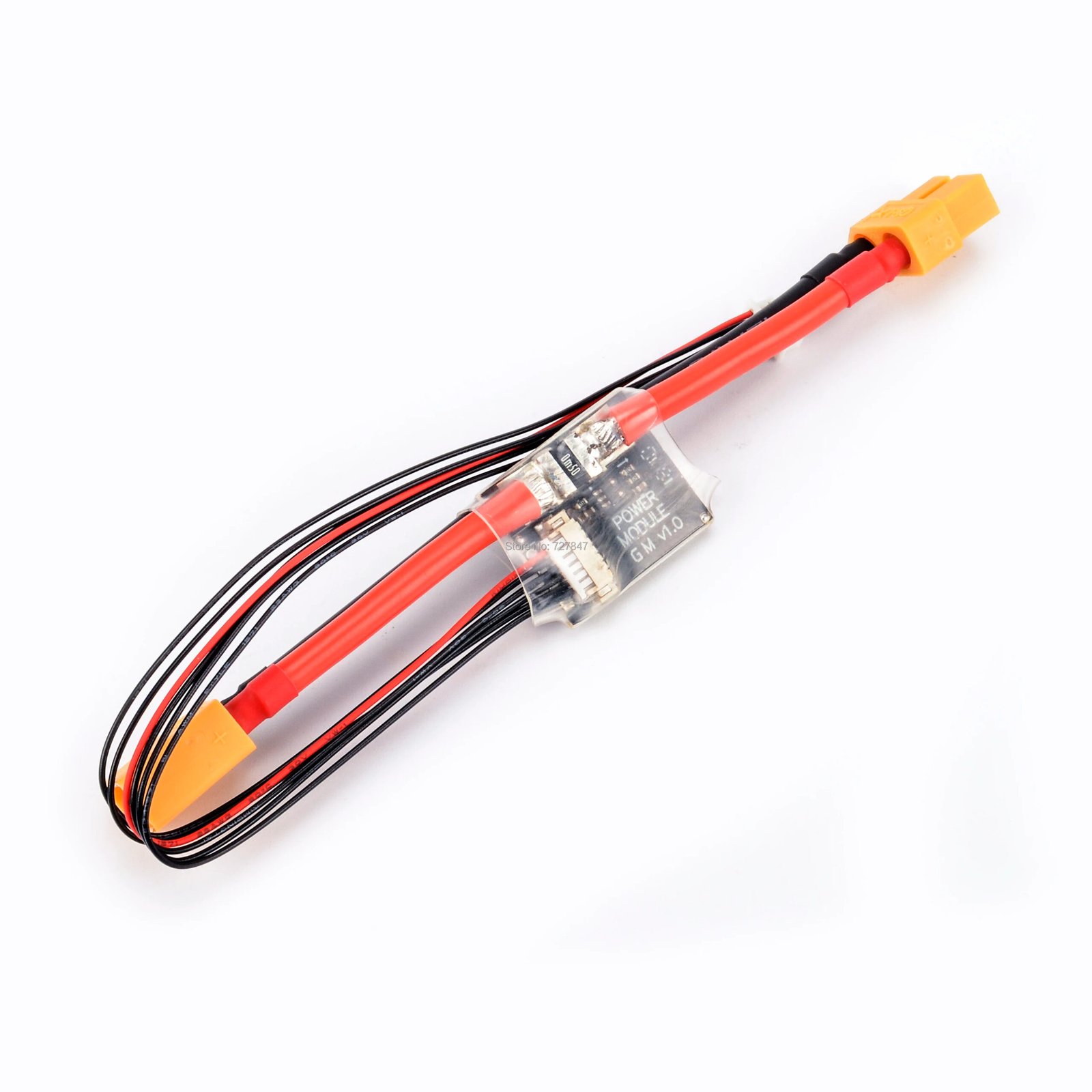

Pixhawk APM Power Module With XT60

Original price was: 700৳ .Current price is: 620৳ .

Brand: APM / Pixhawk Generic
Model: APM/Pixhawk 5.3V BEC Power Module with XT60
Product Type: Flight Controller Power Supply & Current/Voltage Sensor Module
Input Voltage: Up to 28V (Up to 6S LiPo)
BEC Output: 5.3V DC (5.3V / 2.25A)
Max Current Sensing: 90A
Connectors: XT60 Plug (Input/Output) & 6-Pin Cable
Weight: ~18g

Product Description

Features:

Dual Functionality: Acts as both a stable 5.3V BEC power source and a high-precision voltage/current telemetry sensor.

Stable Power Output: Onboard switching regulator converts up to 28V input into a clean 5.3V DC supply to prevent flight controller brownouts.

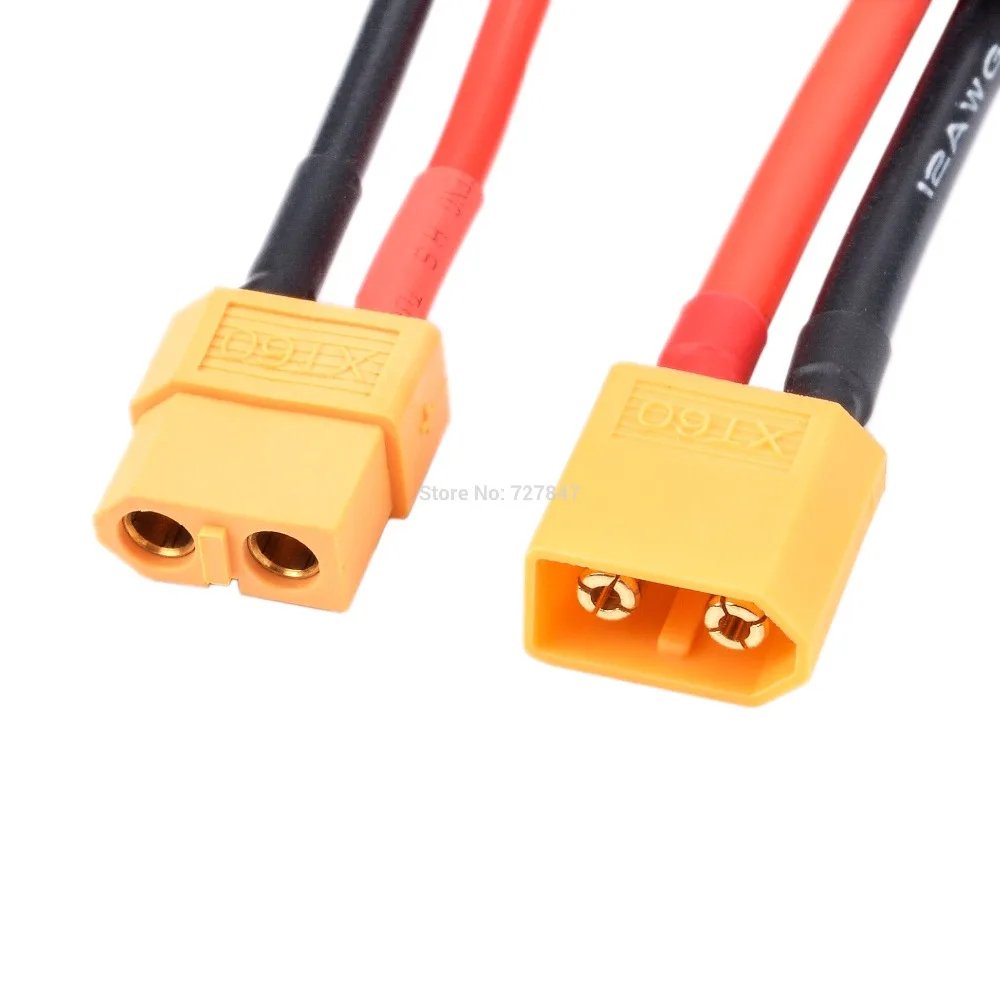

Pre-Soldered XT60 Plugs: Comes with heavy-duty XT60 male and female connectors pre-installed on flexible 14AWG silicone wire for easy plug-and-play installation.

Real-Time Telemetry: Sends accurate battery voltage and total current consumption data directly to ArduPilot / Mission Planner ground control software.

Broad Voltage Range: Safe to use with 2S up to 6S LiPo battery packs for small to large drone builds.

6-Pin Cable Compatibility: Directly plugs into standard APM 2.5/2.6/2.8 and Pixhawk flight controller power ports using the included 6-pos cable.

Specifications:

Name: APM Pixhawk Power Module with XT60

Max Input Voltage: 28V DC (Up to 6S LiPo)

Max Current Sensing: 90A

BEC Output Voltage: 5.3V DC

Max Output Current: 2.25A

Voltage & Current Measurement: Configured for 5V ADC

Cable Connector Interface: Pre-soldered XT60 (Input/Output)

Wire Gauge: 14AWG High-Temp Silicone Wire

Flight Controller Connector: 6-Pin DF13 / GH Cable (6-Pos)

Dimensions: ~30mm x 20mm x 10mm (excluding wires)

Weight: ~18g

আপনি যদি ড্রোন, কোয়াডকপ্টার বা অটোনোমাস ক্রাফটের জন্য একটি সুপার-ডিউরেবল, নির্ভরযোগ্য এবং ভোল্টেজ সেন্সিং অল-ইন-ওয়ান পাওয়ার মডিউল খুঁজে থাকেন, তবে APM Pixhawk Power Module With XT60 হবে আপনার জন্য একটি আল্টিমেট চয়েস।
