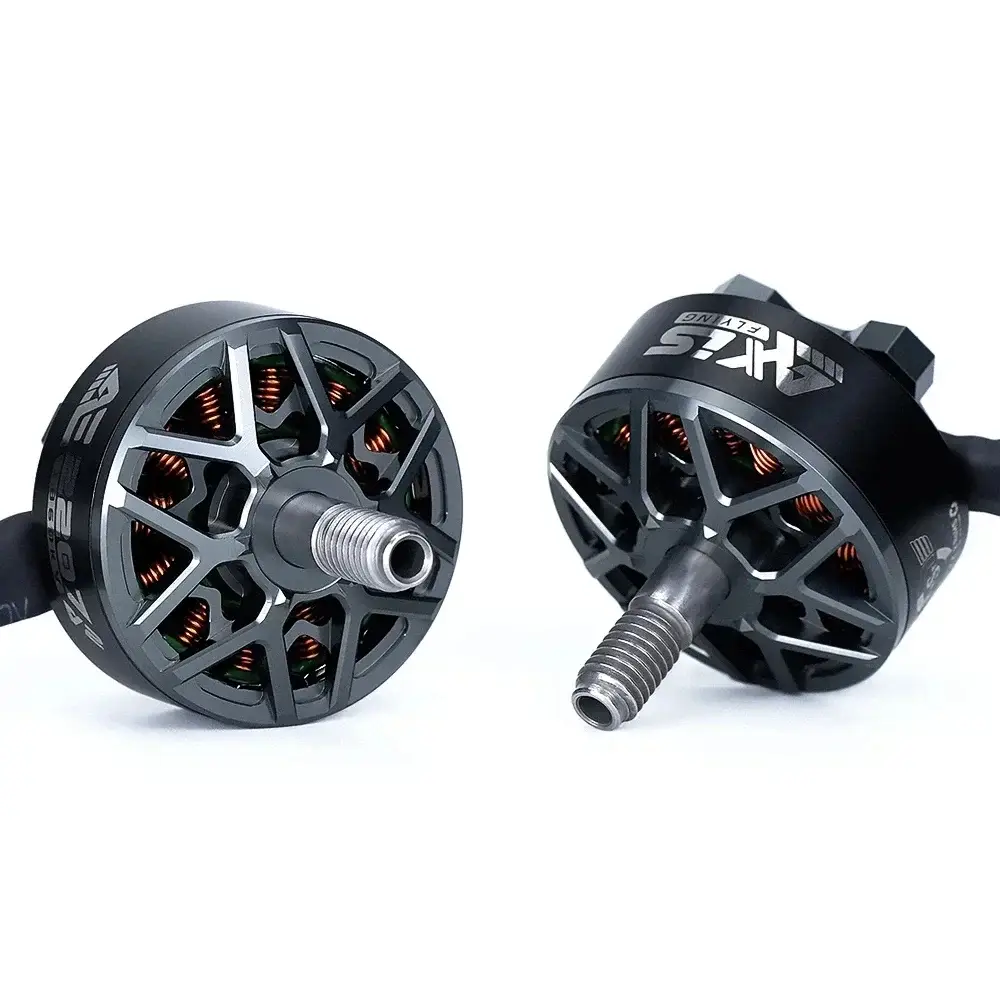

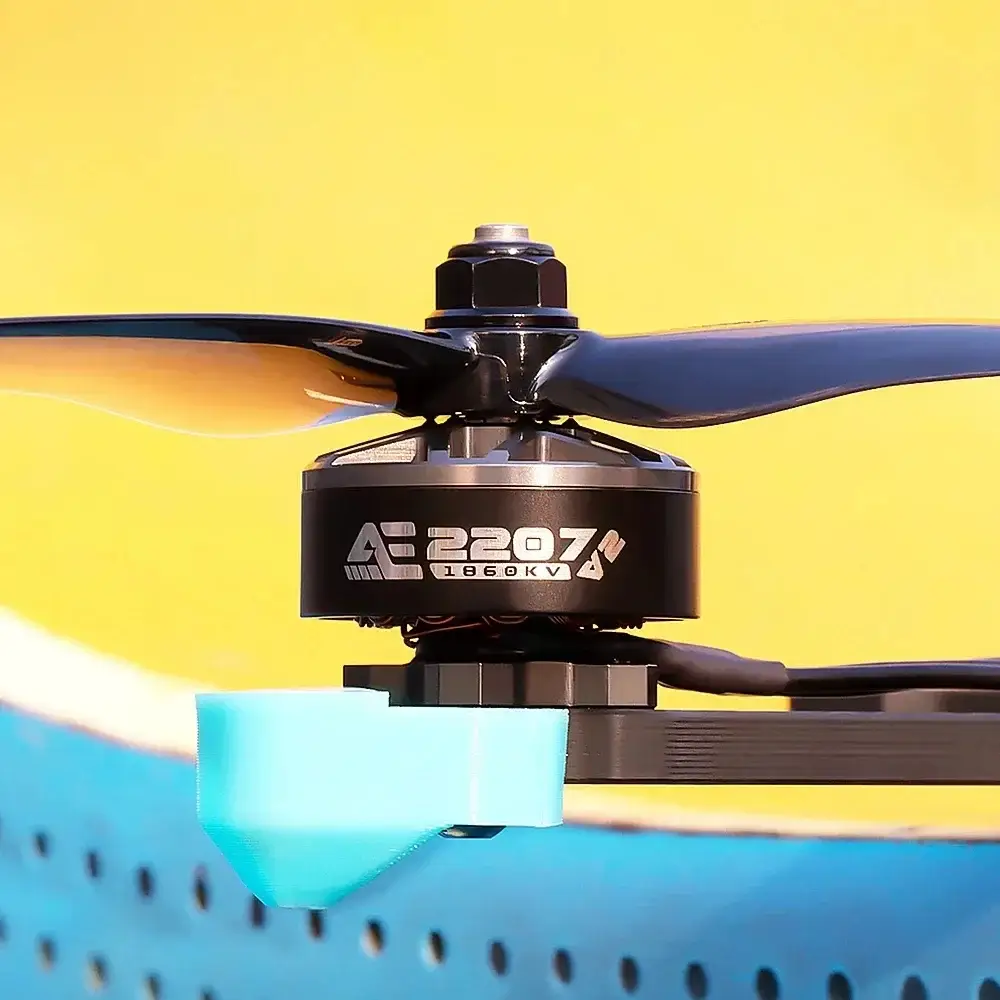

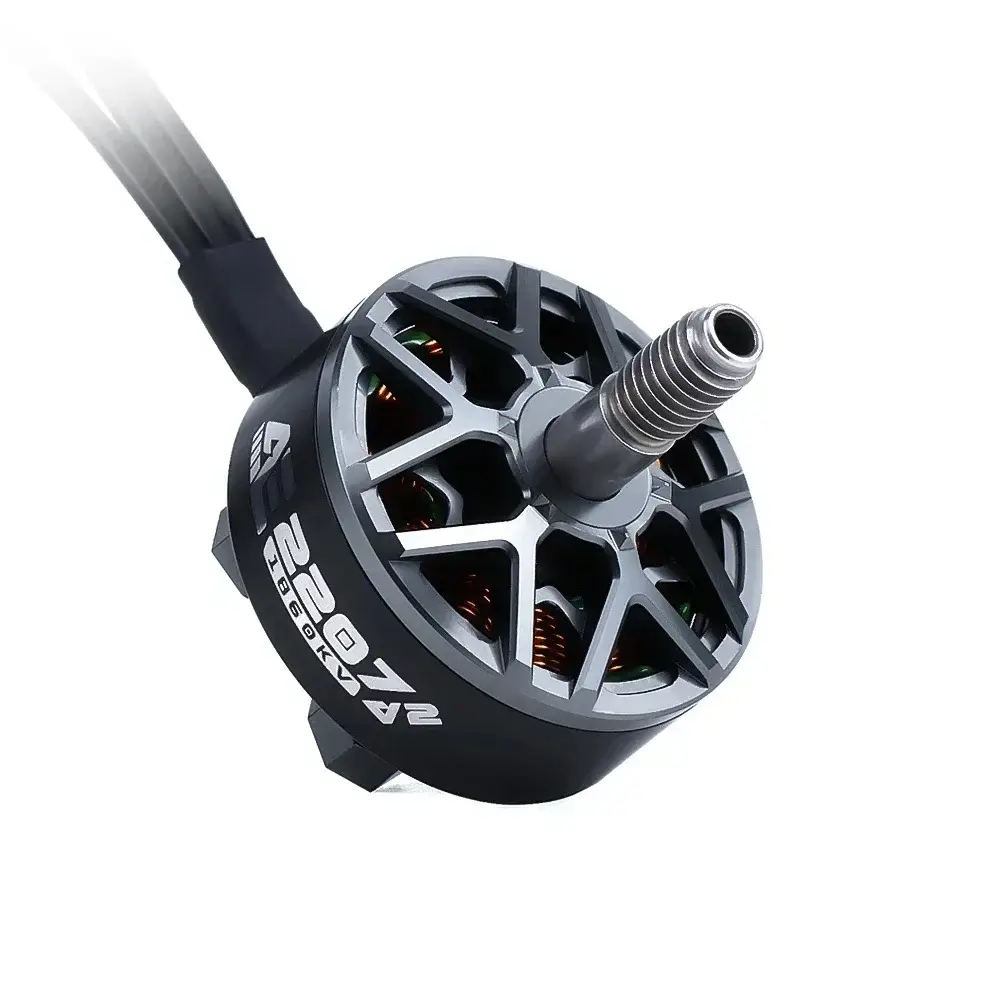

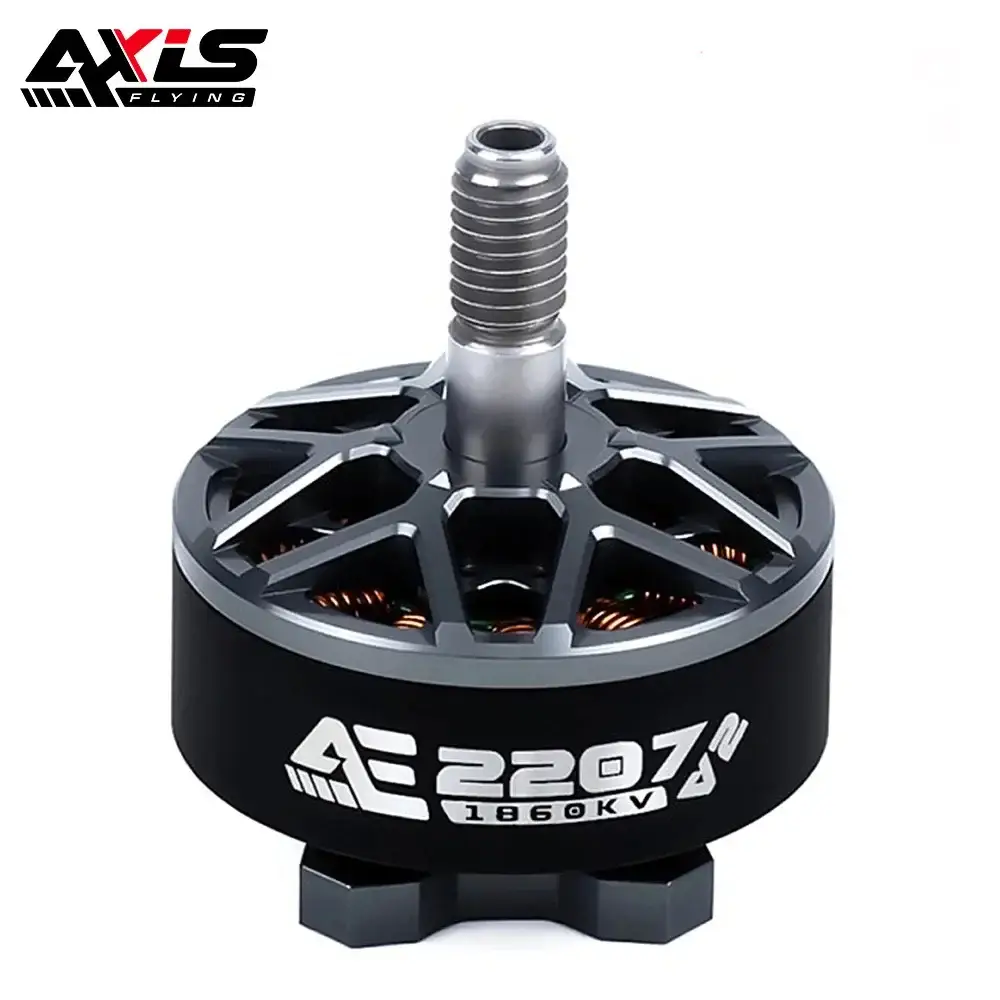

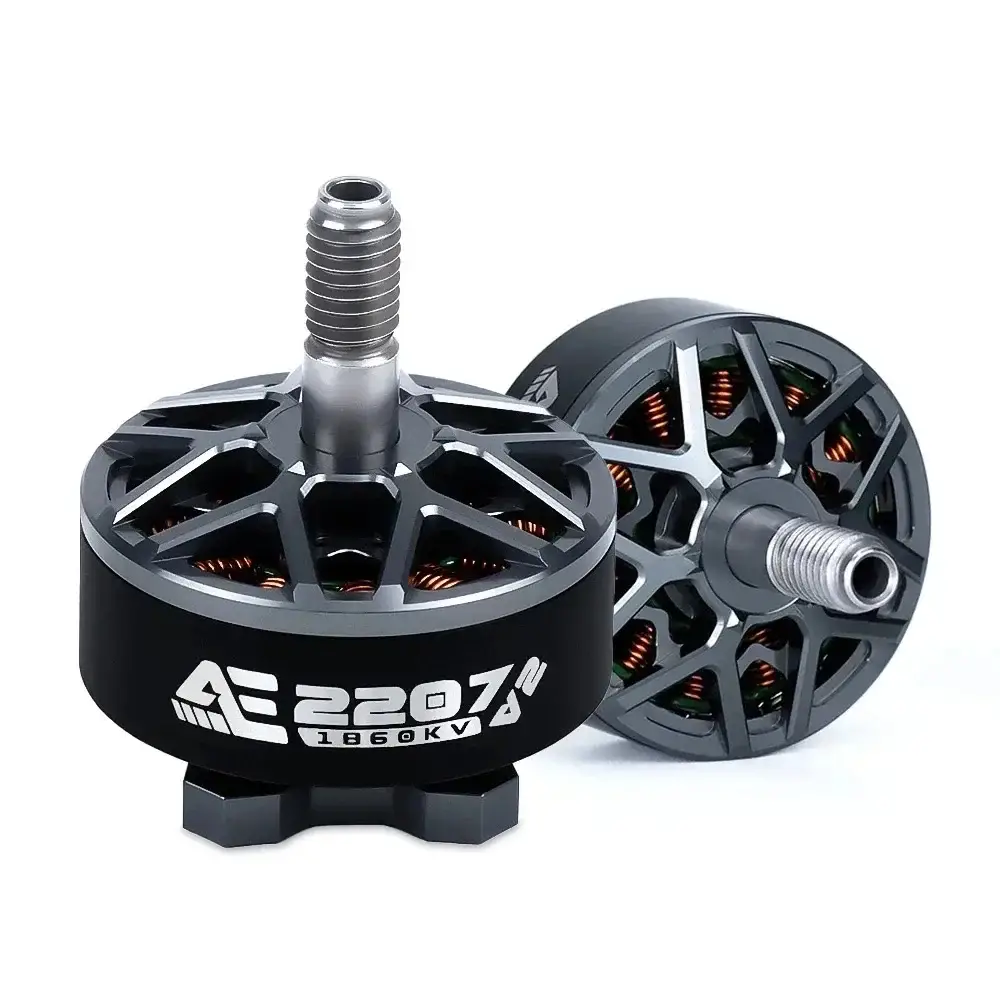

Axisflying AE2207 V2 1860KV Brushless Motor for 5 inch FPV Drone

It features high-grade N52H curved magnets, temperature-resistant copper windings, and an upgraded bell structure designed to resist heavy crash damage. Built specifically for 6S 5-inch FPV drone setups, it provides maximum thrust efficiency, exceptional low-end torque, and complete versatility for freestyle quadcopters, racing drones, and high-speed multirotors.

Features:

Upgraded V2 Bell & Stator Design: Reinforced aluminum motor bell structure offers superior impact protection during severe crashes and hard landings.
High-Grade N52H Curved Magnets: Precision curved arc magnets deliver explosive acceleration, crisp throttle control, and high torque output.
Optimized 1860KV for 6S Batteries: Perfectly tuned for high-voltage 6S LiPo power supplies to maximize electrical efficiency without over-heating.
High-Temperature Copper Windings: Heavy-duty single-strand copper wire withstands high current draw during aggressive full-throttle punch-outs.
Universal 16x16mm Mounting Footprint: Standard M3 mounting pattern easily fits virtually all modern 5-inch and 6-inch FPV drone carbon fiber frames.

Specifications:

Name: Axisflying AE2207 V2 1860KV Brushless Motor
Stator Diameter: 22 mm
Stator Height: 7 mm
KV Rating: 1860 KV
Configuration: 12N14P
Input Voltage: 6S LiPo (22.2V)
Shaft Thread: M5

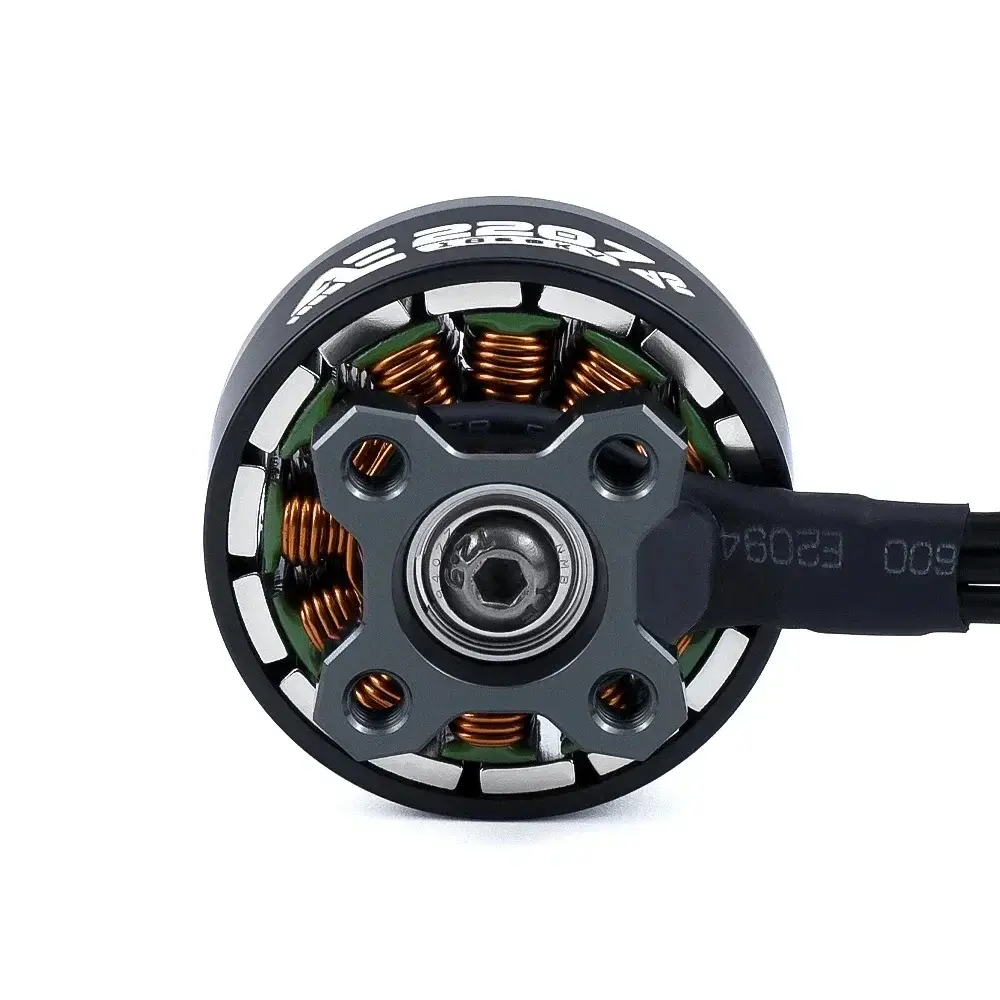

Mounting Pattern: 16mm x 16mm (M3)
Dimensions: 27.2mm x 33.3mm
Weight: ~34.5 g

আপনি যদি ৫-ইঞ্চি এফপিভি ফ্রিস্টাইল বা রেসিং ড্রোনের জন্য একটি সুপার-ডিউরেবল, বাজেট-ফ্রেন্ডলি এবং হাই-পারফরম্যান্স ১৮৬০কেভি ৬এস ব্রাশলেস মোটর খুঁজে থাকেন, তবে Axisflying AE2207 V2 1860KV Motor হবে আপনার জন্য একটি আল্টিমেট চয়েস।

📦 Product Included:

1x Axisflying AE2207 V2 1860KV Brushless Motor
1x M5 Aluminum Lock Nut
4x M3 Motor Mounting Screws
