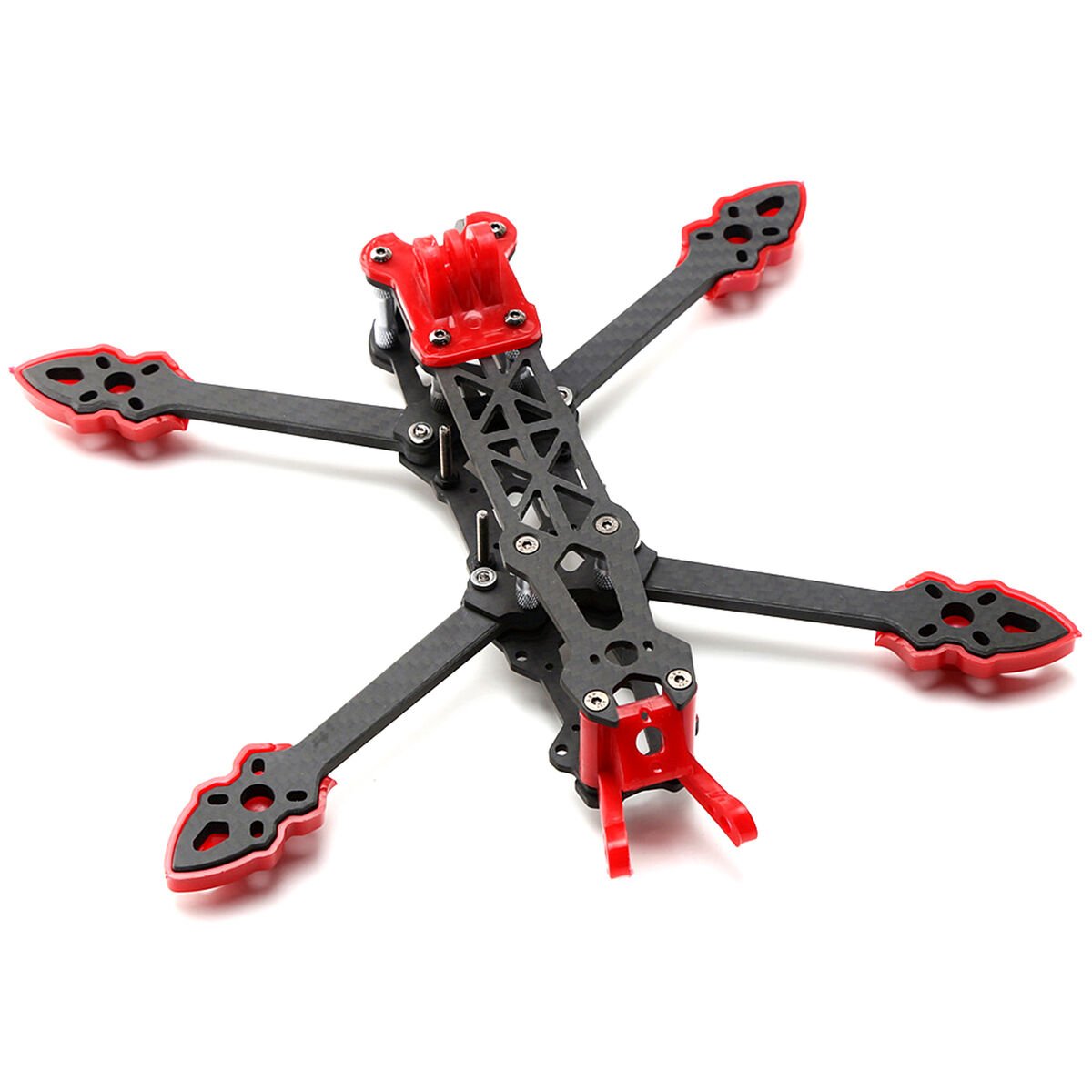

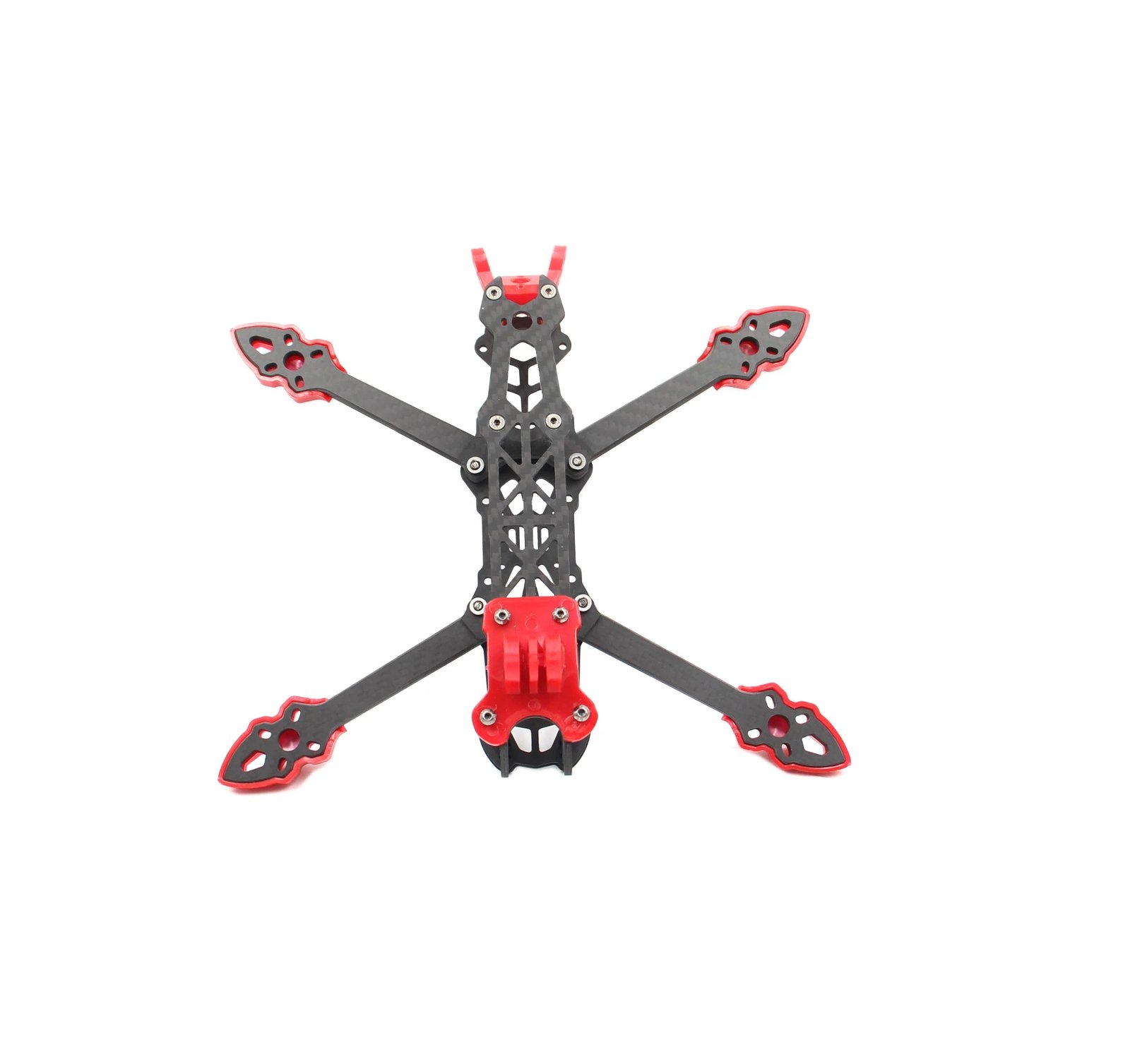

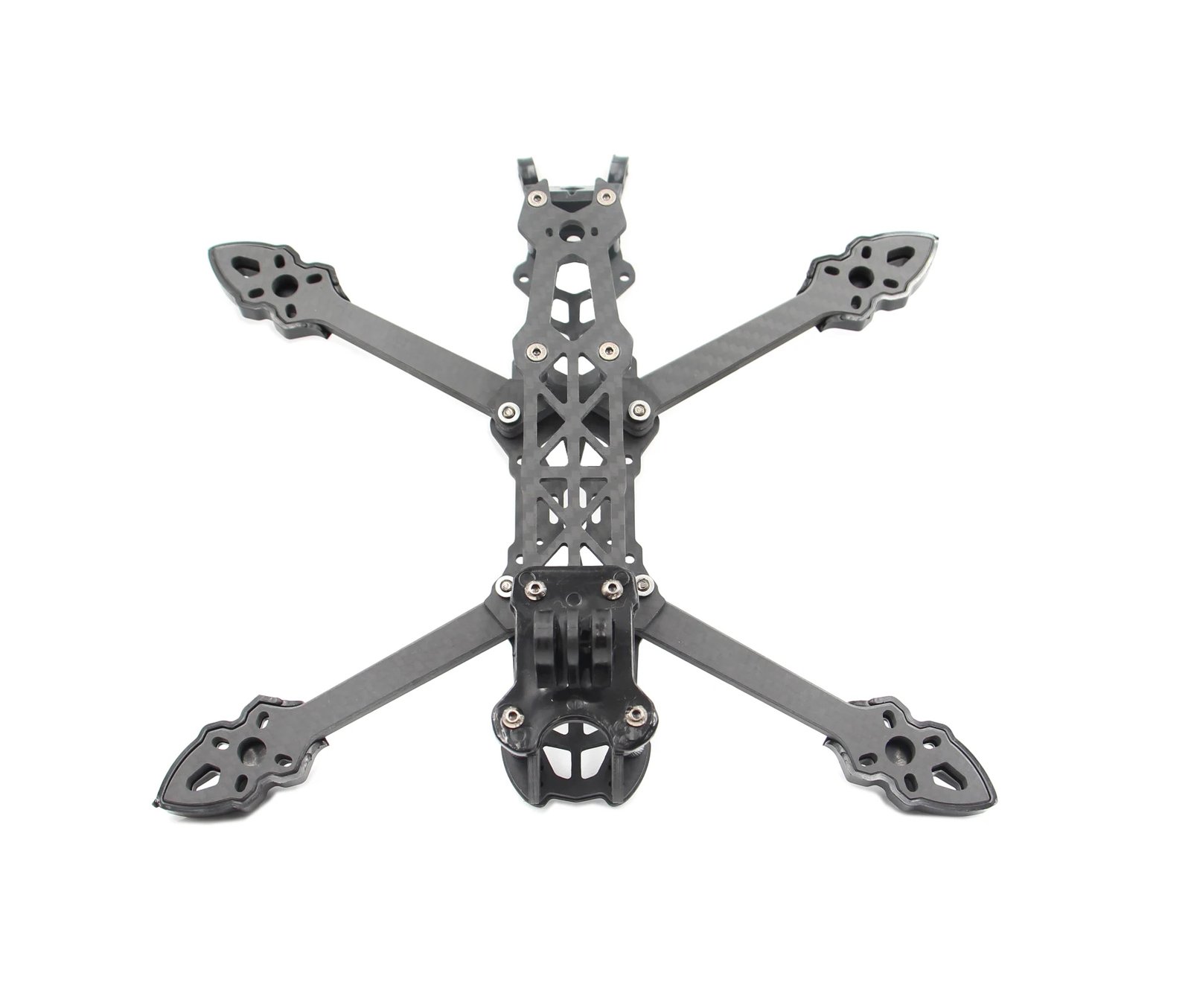

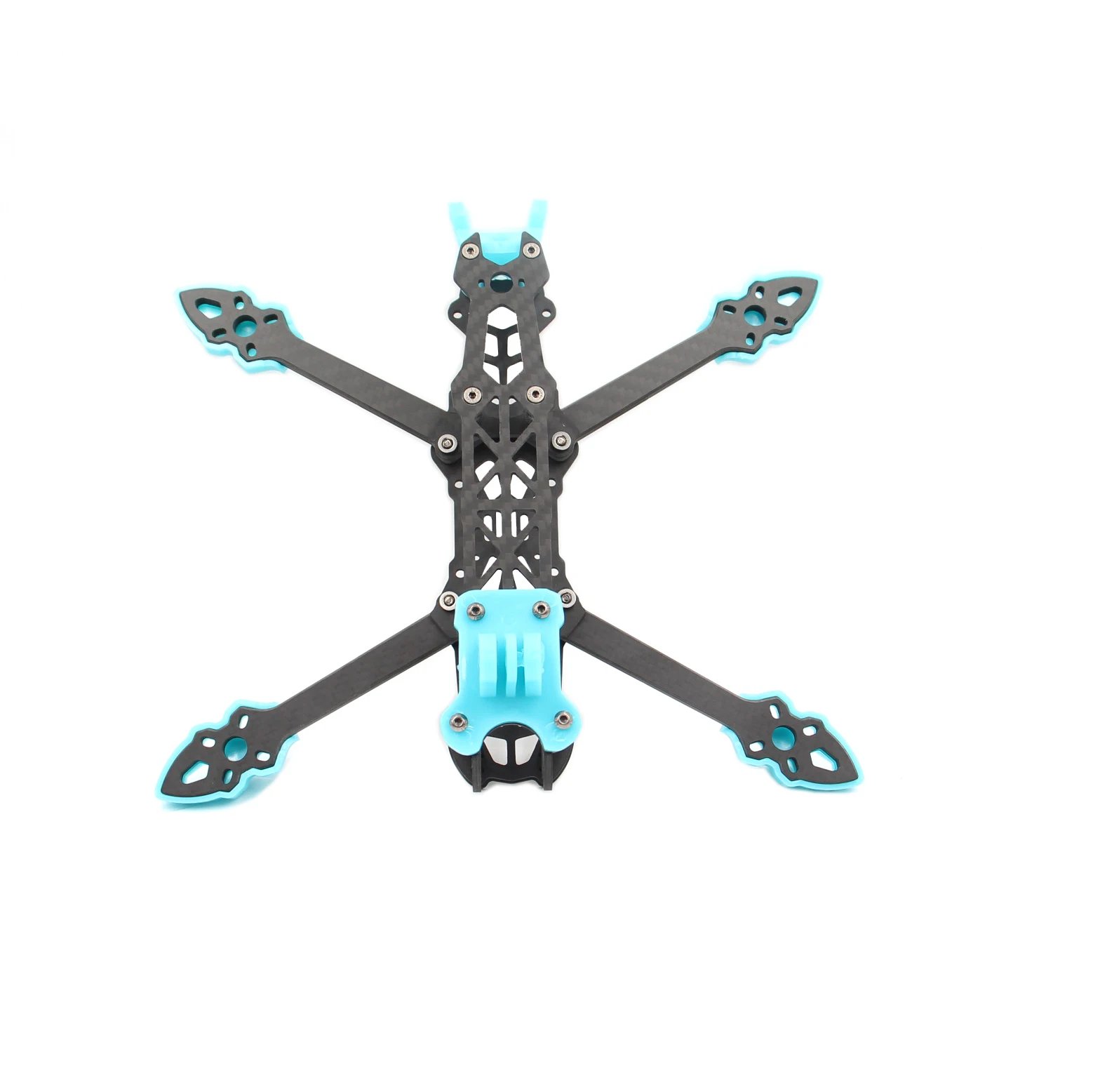

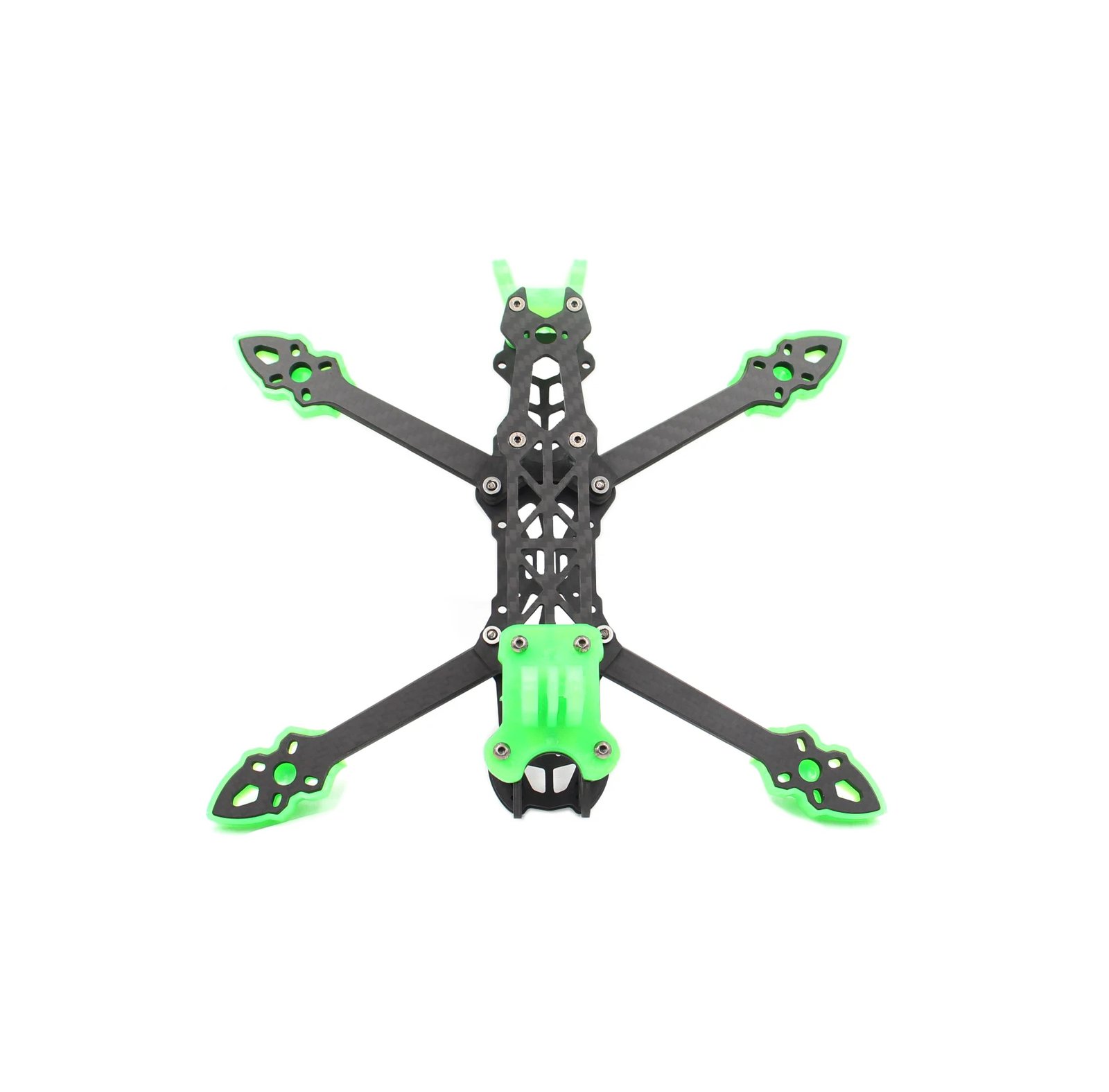

The Mark4 5-Inch FPV Frame is crafted from high-quality 3K full carbon fiber, delivering exceptional structural stiffness and durability while keeping the overall weight light. It features an optimized H-type configuration that ensures balanced flight characteristics, reduced vibrations, and a smooth freestyle or racing experience.
With its modular design, the 5mm thick arms can be easily replaced or maintained in case of hard crashes. The frame offers ample internal space with 25mm standoffs to house your flight controller stack and FPV video transmitter (compatible with both analog setups and digital systems like DJI Air Unit or Vista).
| Parameter | Specification Details |
| Model | Mark4 5-Inch Frame |
| Frame Type | H-Type / True-X Configuration |
| Wheelbase (Motor to Motor) | 225 mm |
| Material | 3K High-Strength Carbon Fiber |
| Arm Thickness | 5 mm |
| Top & Bottom Plate Thickness | 2.5 mm |
| Weight | ~110g – 120g (approx.) |
| FC Mounting Holes | 20×20 mm & 30.5×30.5 mm Stacks |
| Camera Mount Width | 19 mm / 20 mm (Micro FPV size) |
| Motor Mounting Pattern | 16×16 mm / 19×19 mm |
| Compatible Propeller Size | 5 inch |
Flight Controller: F4 / F7 Flight Controller Stack
Motors: 2205 / 2207 / 2306 Brushless Motors
ESC: 30A – 60A 4-in-1 ESC
Propellers: 5-inch 3-Blade Props (e.g., Gemfan / HQProp)
Battery: 4S 1500mAh to 6S 1300mAh LiPo

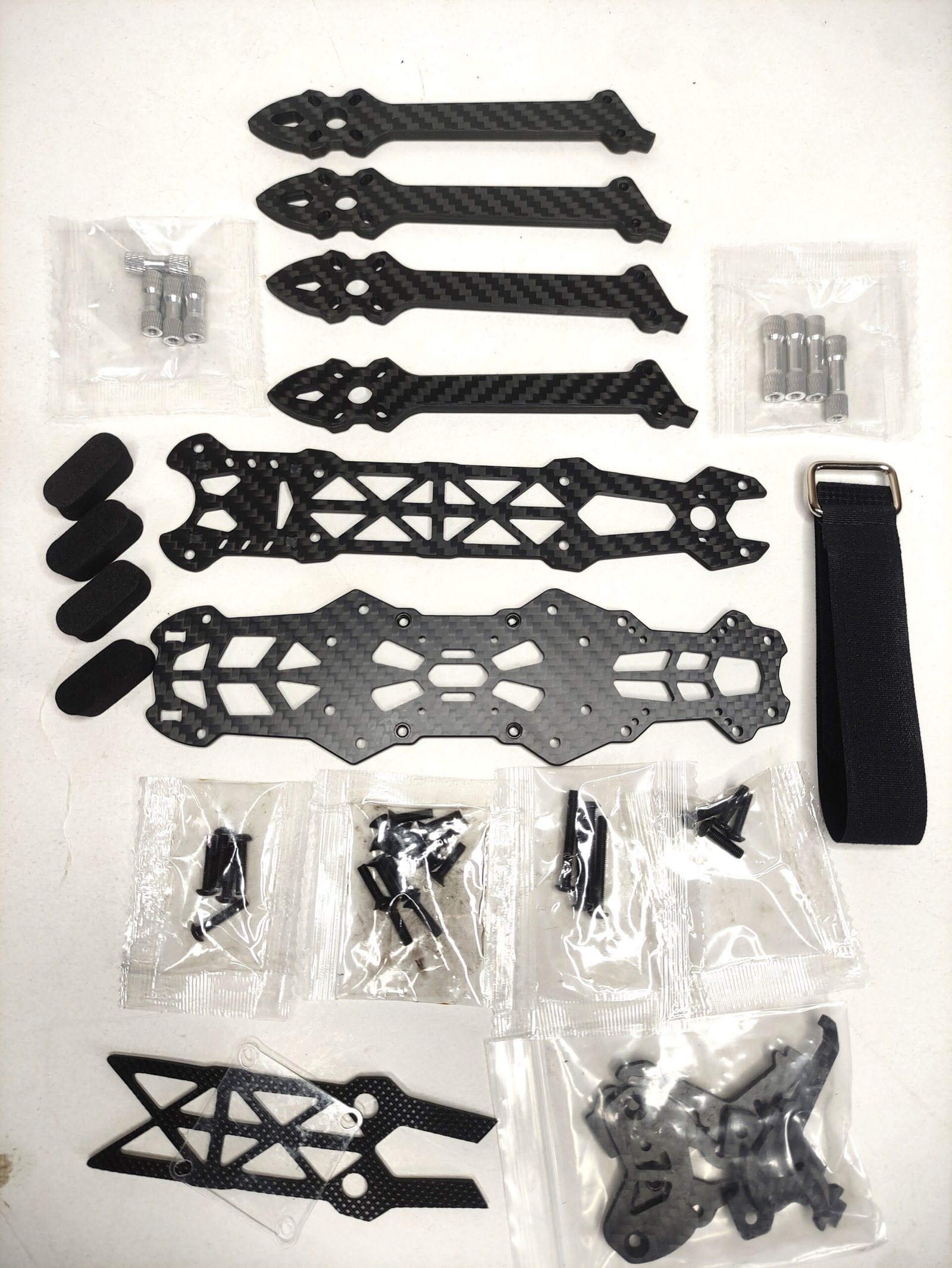

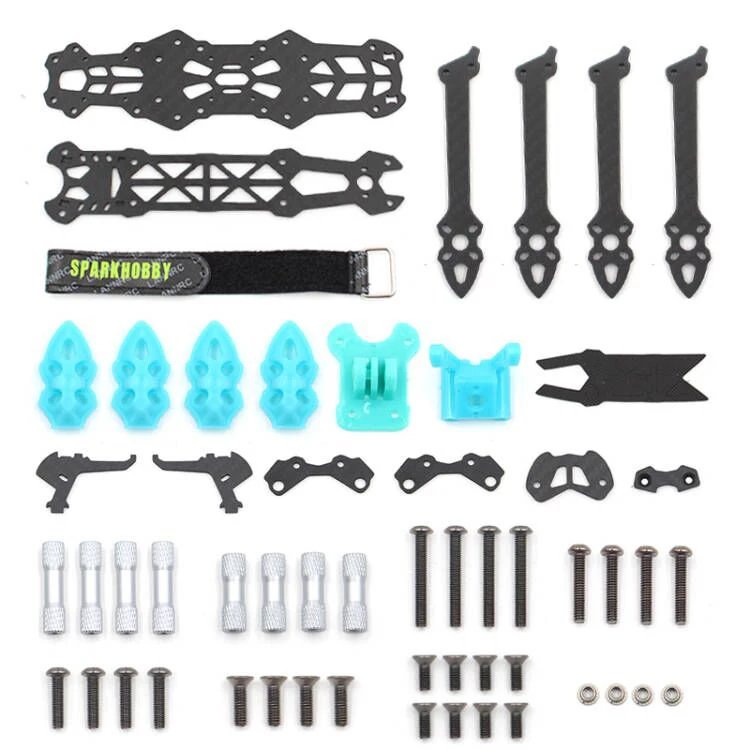

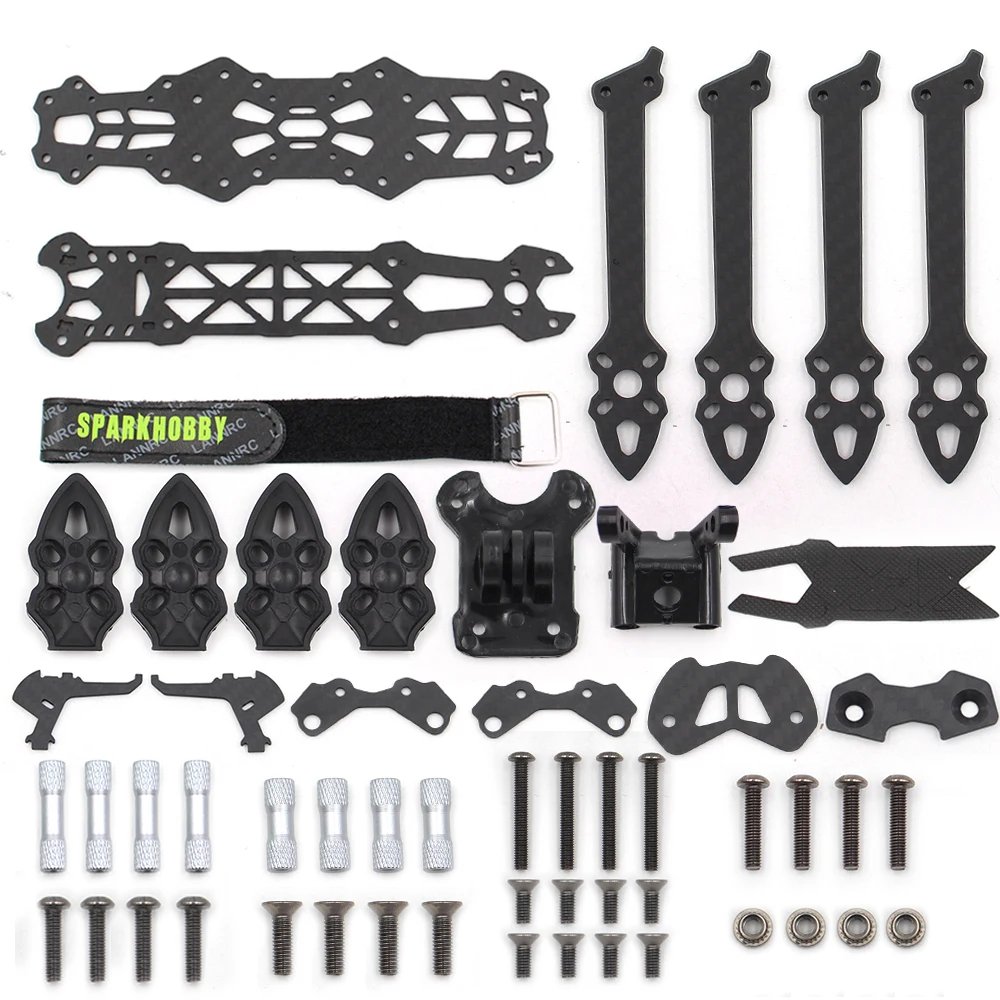

4 x 5mm 5-inch Carbon Fiber Arms
1 x Top Plate & 1 x Bottom Plate
2 x Side Camera Plates
1 x Hardware Set (Alunium Standoffs, Screws & Nuts)
1 x Anti-slip Lipo Battery Pad & Strap
