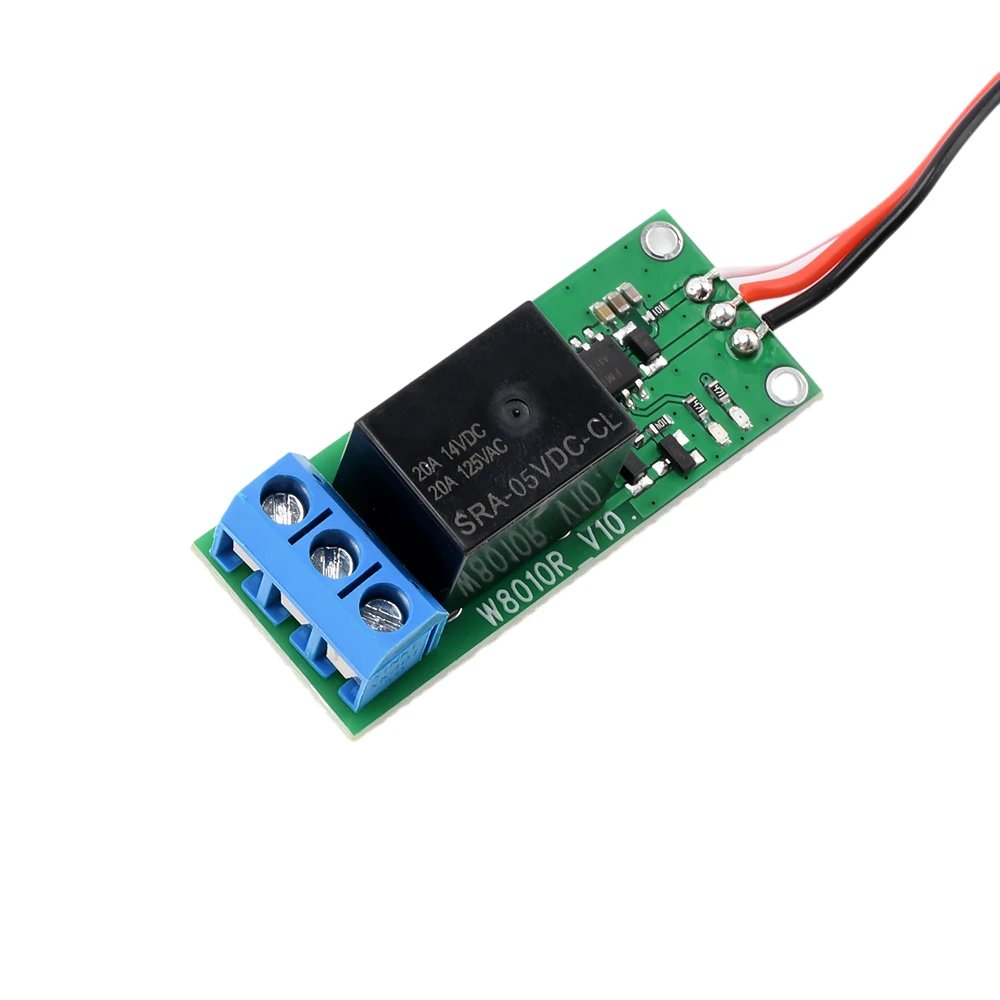

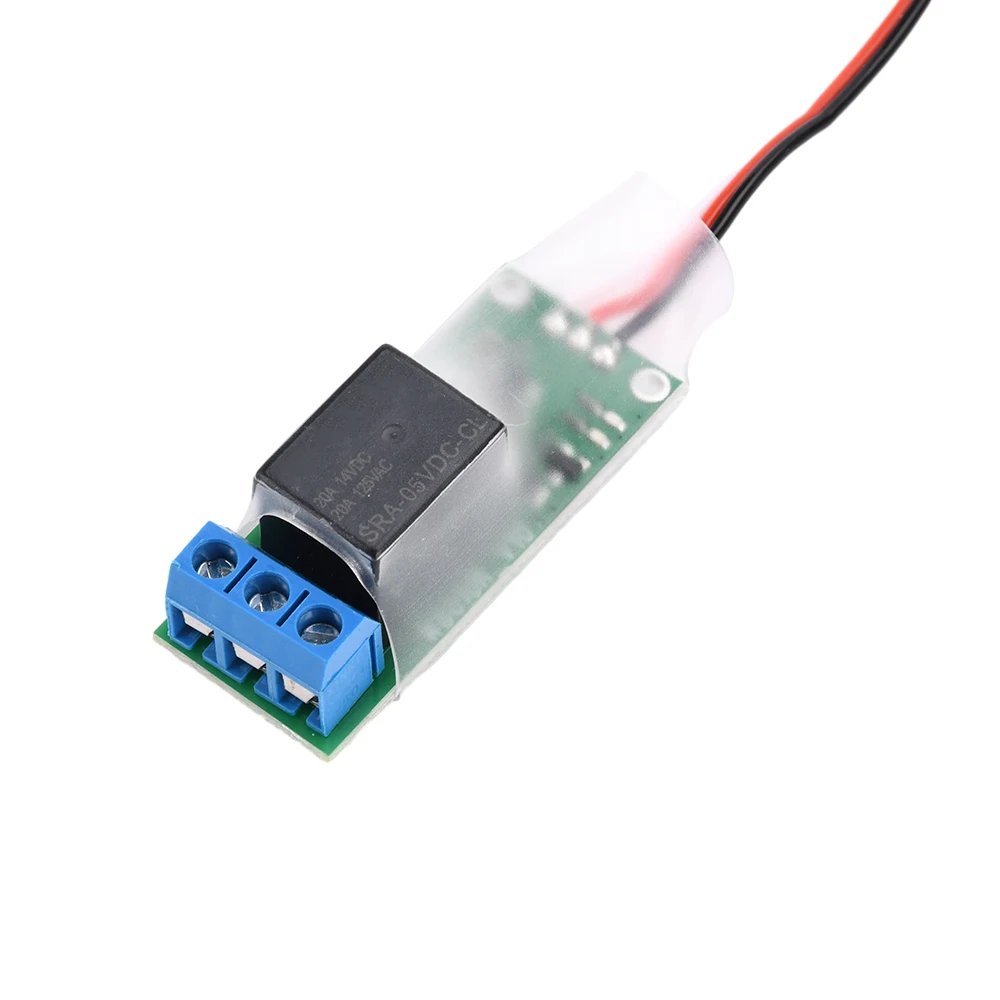

PWM RC Remote Controll Relay Module 5v

It features a high-sensitivity PWM signal decoder, optocoupler/transistor isolation, and heavy-duty relay contacts. Built with wide supply voltage compatibility, quick plug-and-play servo connector, and bright switching indicator LEDs, it provides maximum electrical safety, interference-free remote triggering, and complete versatility for RC night lights, smoke generators, water pumps, and microcontroller automation systems.

Features:

Direct RC Receiver Control: Plugs straight into any spare channel on your 2.4GHz RC receiver (FlySky, FrSky, Futaba, RadioMaster) for effortless remote switching.
Wide Operating Voltage: Works seamlessly across 5V to 12V DC power inputs, ideal for direct connection to receiver power or external LiPo batteries.
High-Current Output Relay: Supports heavy loads up to 10A (AC 250V / DC 30V), making it perfect for headlights, pumps, solenoids, and sirens.
Signal State LED Indicator: Onboard LED provides visual confirmation when the PWM signal triggers the relay ON or OFF.
Safe & Isolated Circuitry: Prevents high-voltage feedback from reaching your sensitive RC receiver or flight controller.

Specifications:

Name: PWM RC Remote Control Relay Module 3.3-5v PWM Switch
Input Control Signal: PWM Signal (Standard Servo Channel)
Relay Voltage Rating: 5V – 12V DC
Relay Contact Current: Max 10A
Trigger Threshold: > 1500 µs (Standard Switch ON)

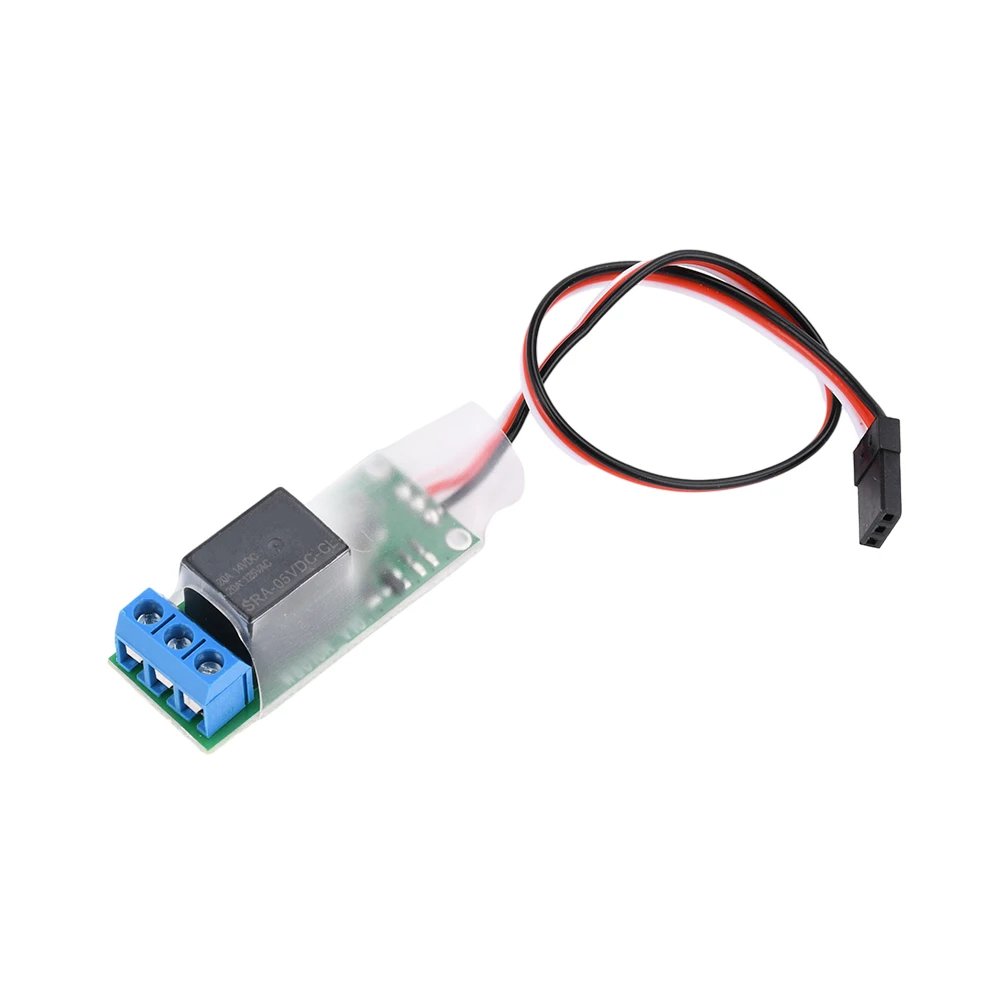

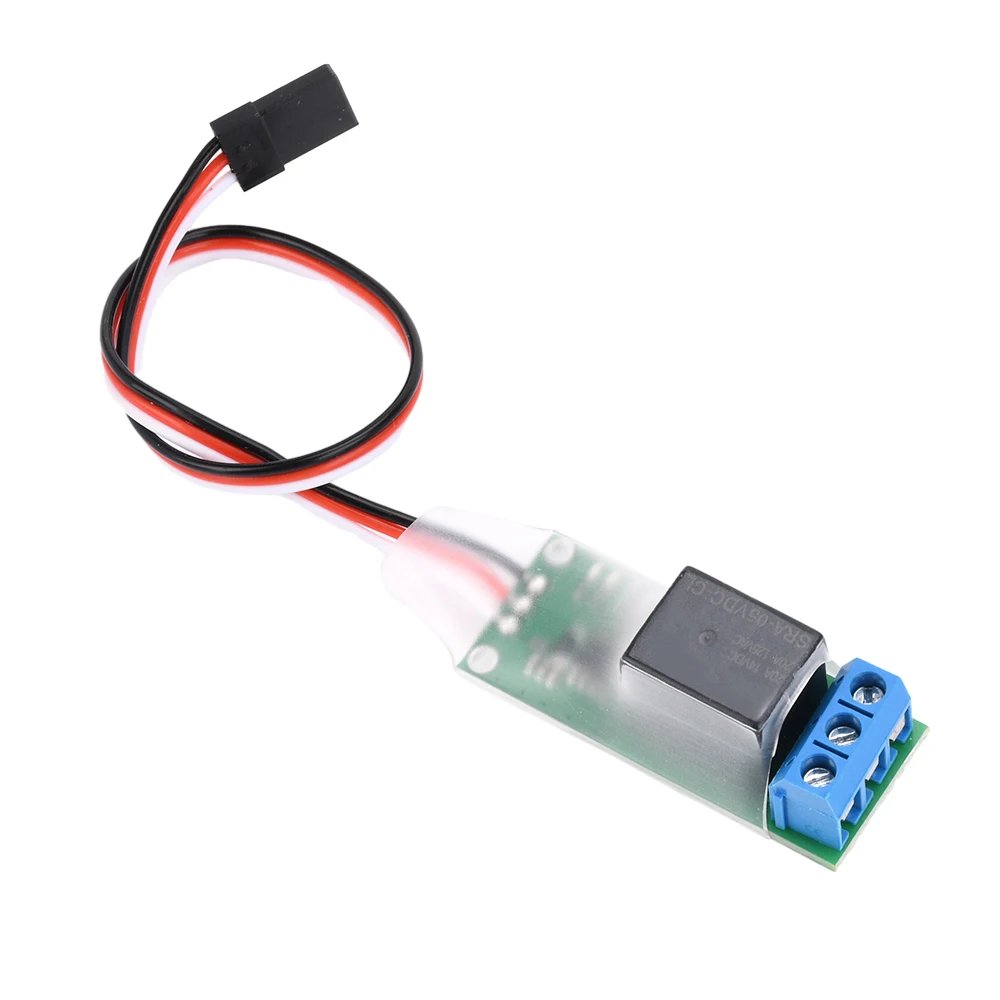

Connector Type: 3-Pin Servo Cable Connector (VCC, GND, Signal)

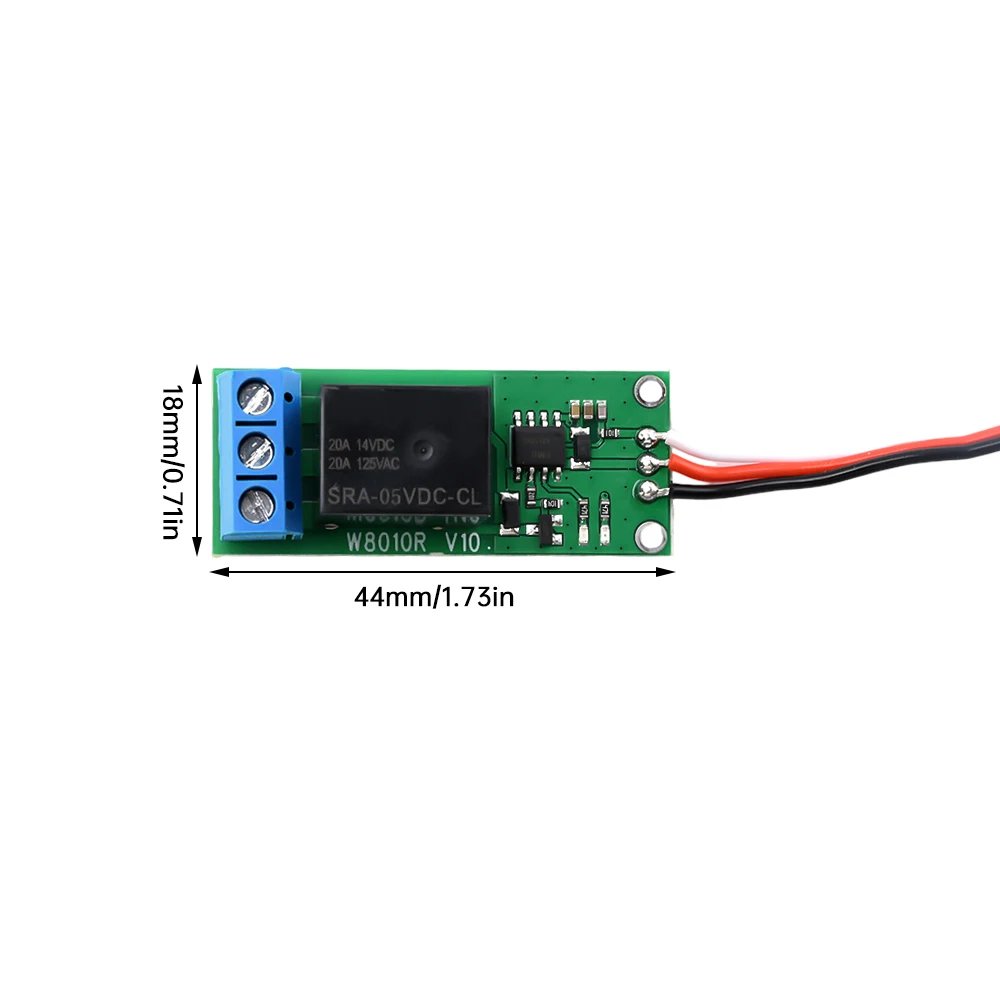

Dimensions: ~40mm x 20mm x 18mm
Weight: ~15g

আপনি যদি ড্রোন লাইটিং, আরসি বোট, ওয়াটার পাম্প বা অন্য যেকোনো ইলেকট্রনিক ডিভাইস দূর থেকে অন/অফ করার জন্য একটি সুপার-ডিউরেবল, বাজেট-ফ্রেন্ডলি এবং হাই-ক্যাপাসিটি আরসি সুইচ খুঁজে থাকেন, তবে PWM RC Remote Control Relay Module 5-12V PWM Switch হবে আপনার জন্য একটি আল্টিমেট চয়েস।

📦 Product Included:

1x PWM RC Remote Control Relay Module 5-12V PWM Switch
